Barricade 12,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

(49 customer reviews)


In stock

SKU: S502542 Categories: , ,


Recovery Power. Over coming obstacles is all part of the fun when you go off-roading in your GMC Sierra. So, you should be prepared for the likely possibility of getting stuck out on the trail by outfitting your rig with a reliable recovery system like Barricade Off-Road’s 12000 lb Heavy Duty Winch. This Barricade Winch, which includes a Synthetic Rope, will provide you with the pulling power you require to get yourself or others unstuck from the messiest situations.

Heavy Duty 12000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 187.2:1 gear ratio, this Barricade Winch provides 12000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

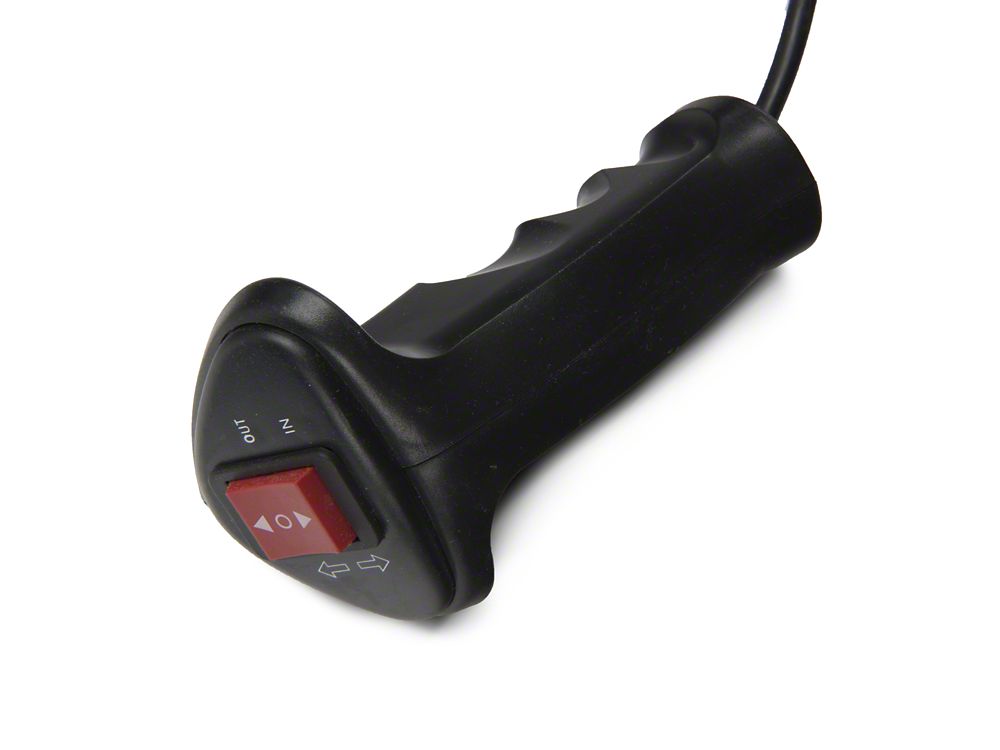

Additional Features. This Barricade Off-Road 12000 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.

Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1″ × 6.3″ × 8.6″ and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.

Application. This Barricade Off-Road 12000lb Winch is designed for use on all 1999-2023 GMC Sierra models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

Line Pull Speeds

  • 0 lbs. – 33.3 ft./min
  • 4000 lbs. – 16.8 ft./min
  • 6000 lbs. – 12.8 ft./min
  • 8000 lbs. – 10.1 ft./min
  • 10000 lbs. – 8.8 ft./min
  • 12000 lbs. – 7.6 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.

Additional information


Universal; Some Adaptation May Be Required



49 reviews for Barricade 12,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

  1. Larry C (verified owner)

    Shopping around for winches, this winch is a much better price and better quality than others that were researched. Looks great and easy installation. Installed on the Barricade Trail Force HD Bumper with LED lights. Looks great.

  2. Douglas (verified owner)

    1st time ordering from your group, all went well , install was less than 1hr and was great, needs to say something about the black wire on the bottom going on b-4 you mount it to the plate but other than that things were great. havent needed it yet but it looks great

  3. Scott D (verified owner)

    Easy to install and operate. Comes with a great warranty as well.

  4. Ian C (verified owner)

    Great product for my 2015 Hard Rock had to use a bulldog winch plate easy to wire

  5. Stephen E (verified owner)

    Use this with a hitch mount on my AM General H1 and Jeep JK. Have not doine any pulling but, winch has great fit and finish, easy instructions, operates smoothly and was a great value considering the price and lifetime warranty.

Only logged in customers who have purchased this product may leave a review.
