Pulling Power. Whether you are a novice, or a seasoned off-roader you know the importance of being prepared for any situation that could happen out on the trail. It is for this reason you should outfit your GMC Sierra with a reliable recovery system like Barricade Off-Road’s 9500 lb Heavy Duty Winch. This Barricade Winch, which includes a Synthetic Rope, will provide you with the pulling power you require to get yourself or others freed from the biggest rock jam or deepest mud pit.

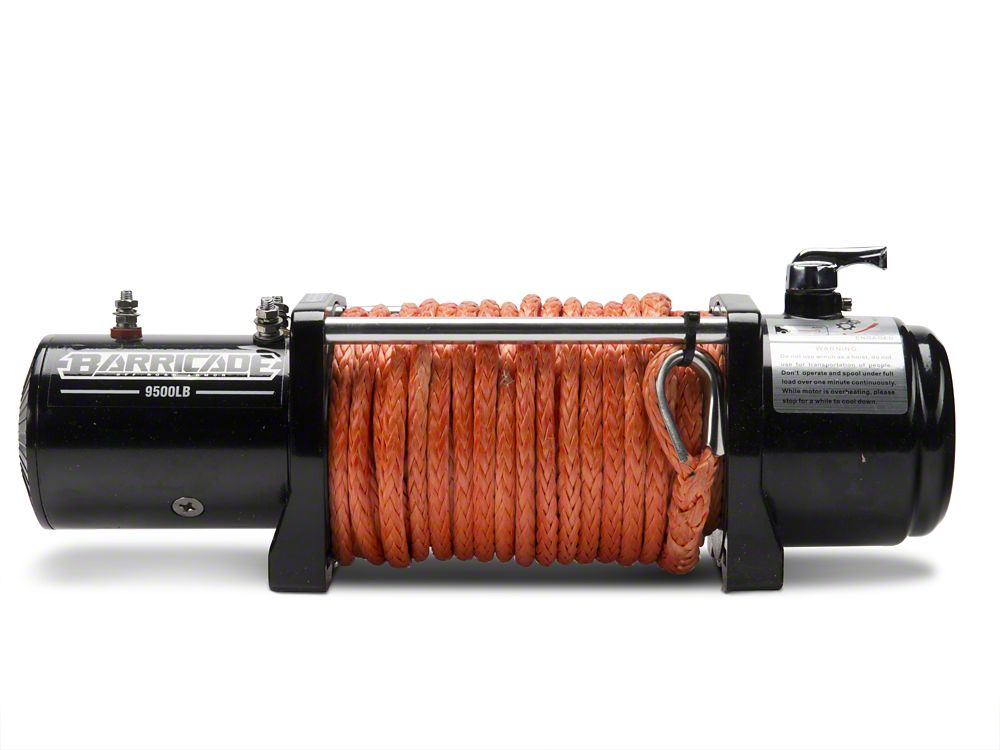

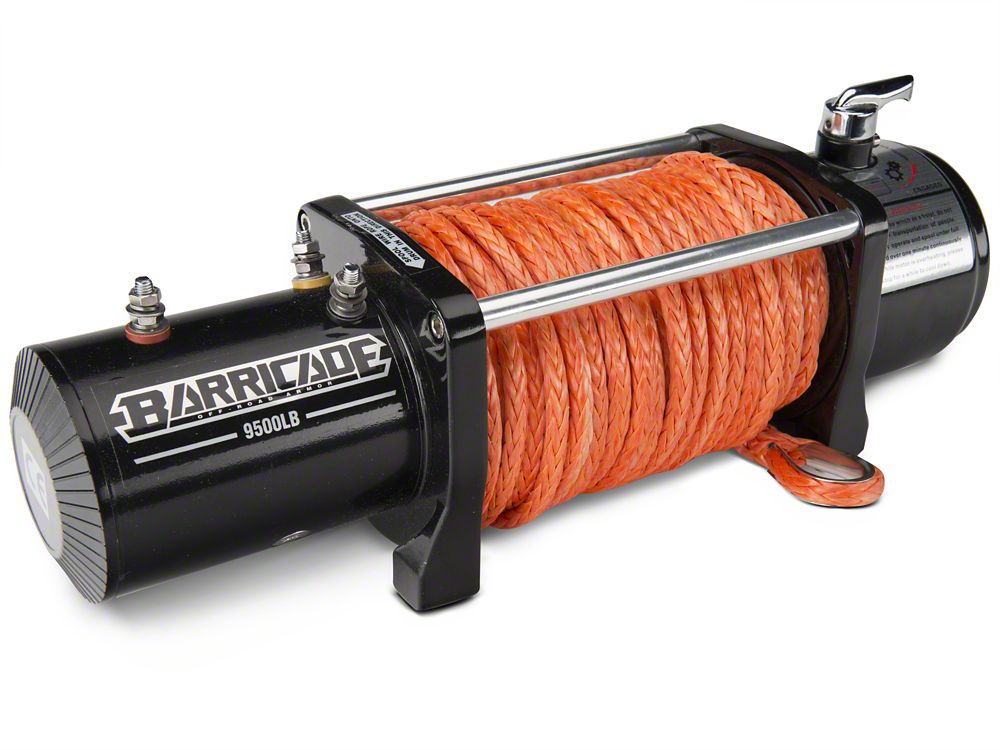

Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

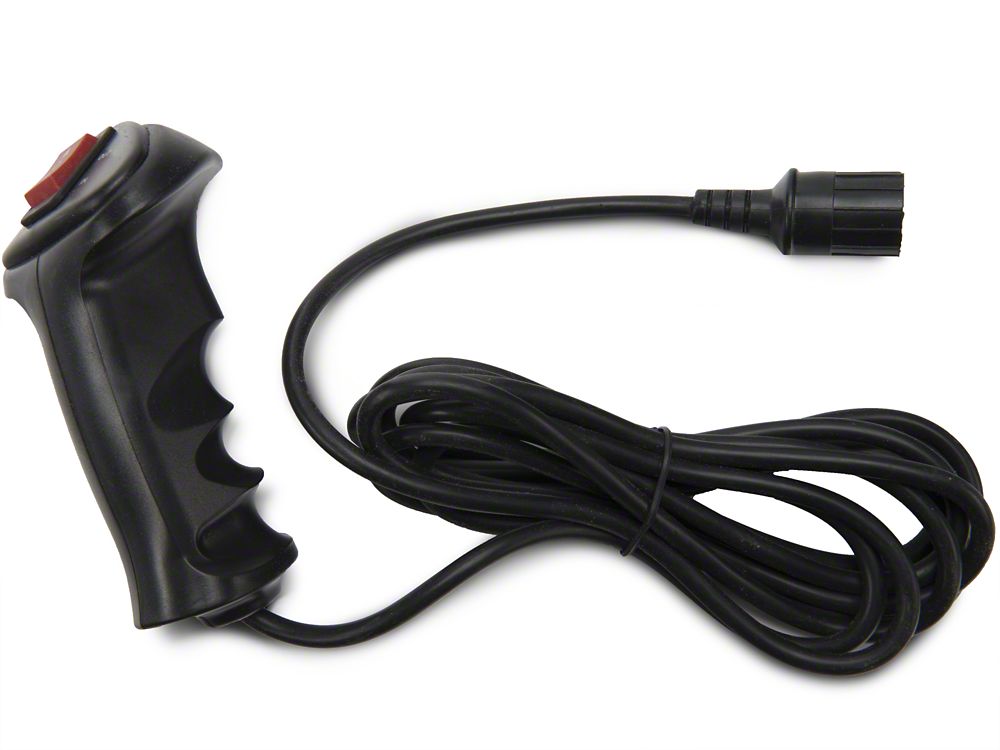

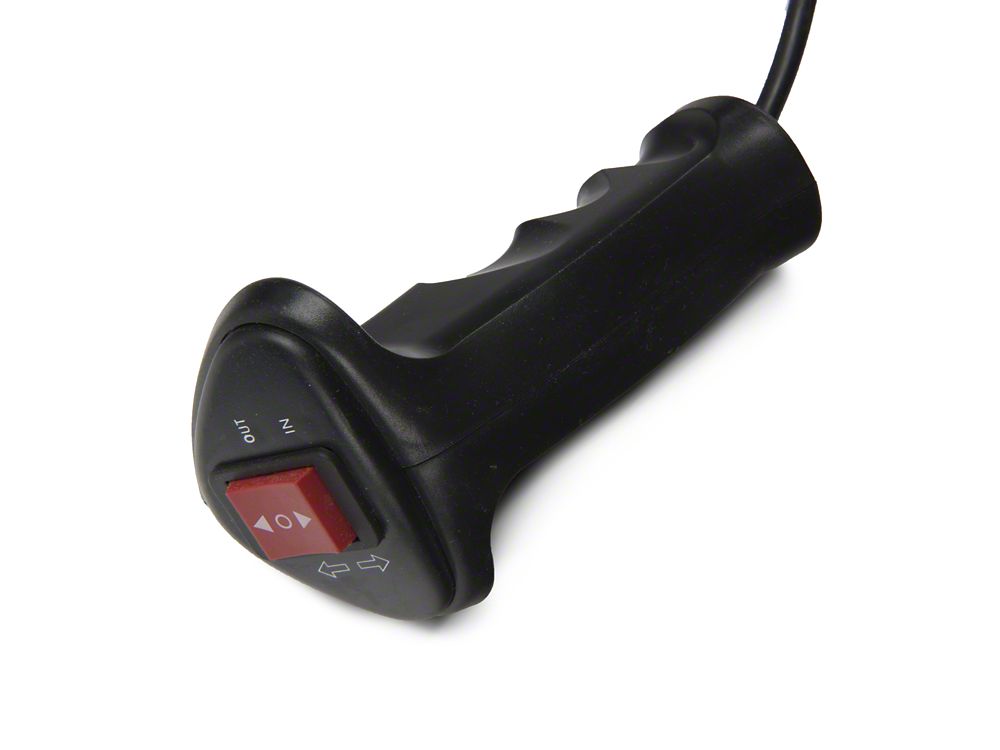

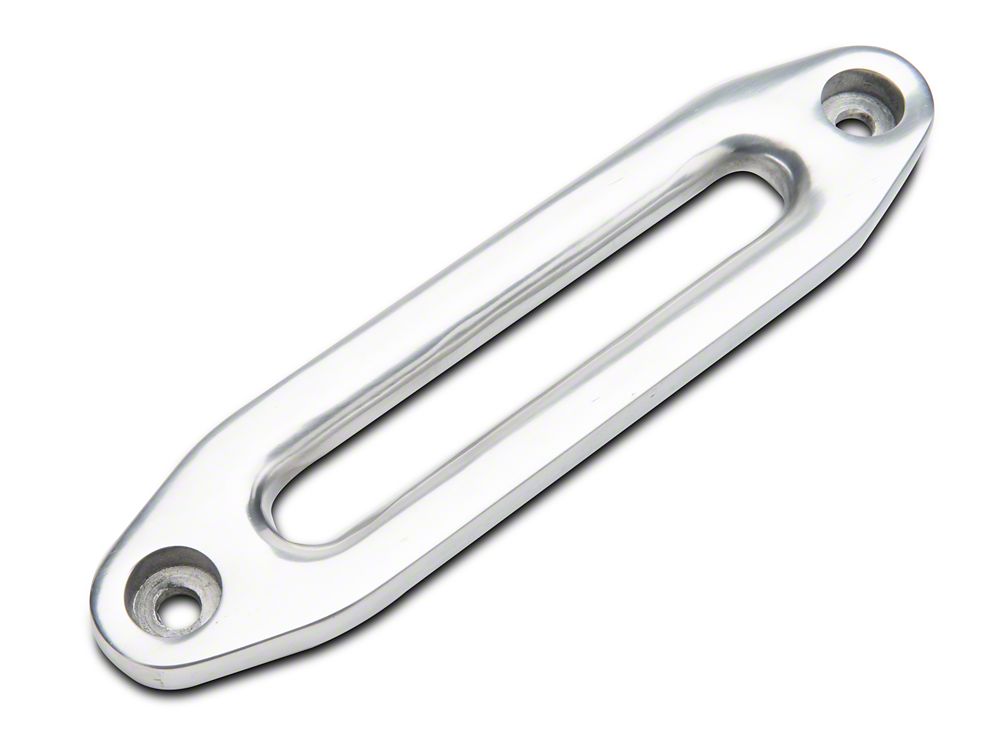

Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1″ × 6.3″ × 8.6″ and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.
Application. This Barricade Off-Road 9500lb Winch is designed for use on all 1999-2023 GMC Sierra models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. – 35.4 ft./min
- 2000 lbs. – 14.8 ft./min
- 4000 lbs. – 11.2 ft./min
- 6000 lbs. – 9.5 ft./min
- 8000 lbs. – 7.87 ft./min
- 9500 lbs. – 6.43 ft./min
Michael (verified owner) –
Easy to install and nice look. I have used it a couple of times and no problems. This winch is a perfect compliment to my new bumper.
Danny C (verified owner) –
I ordered this product for 2 reasons. Looks and price. The price is way below what it should be, considering it has a synthetic rope. Plus I love the orange color. The quality is way better than 2 prior winches that I have owned. At times you order an item and hope it performs as well as advertised. I truly got way more than my money’s worth. If I sell this jeep, this winch stays with me! Thanks for your time.
Michael (verified owner) –
Overall I love this product it has wonderful pulling power and looks beautiful. The only bad thing i have to say is that it didn’t come with anything to show you how to wire it in. This is my first winch that i have ever tried putting in and it took some trial and error to figure out which wires went where on the winch.
Christopher L (verified owner) –
So far it is what I expected. Once I get out there and use it will be the test.
Randy S (verified owner) –
The winch was very easy to install and looks great. Seems to have plenty of power.
