Description
Be Prepared For a Recovery Situation. It doesn’t matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and “be prepared” for what the trail might throw at you. That’s why you should outfit your Wrangler with a reliable recovery system like Barricade Off-Road’s 10,000 lb Winch. This Barricade Winch will help you to get out of the messiest situations.

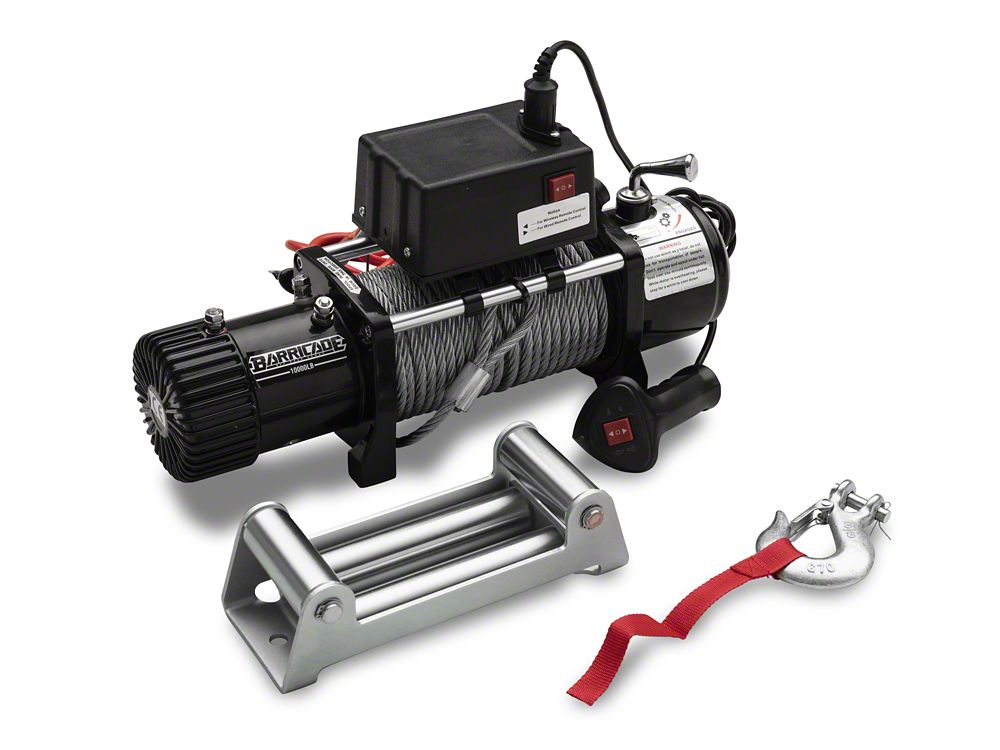

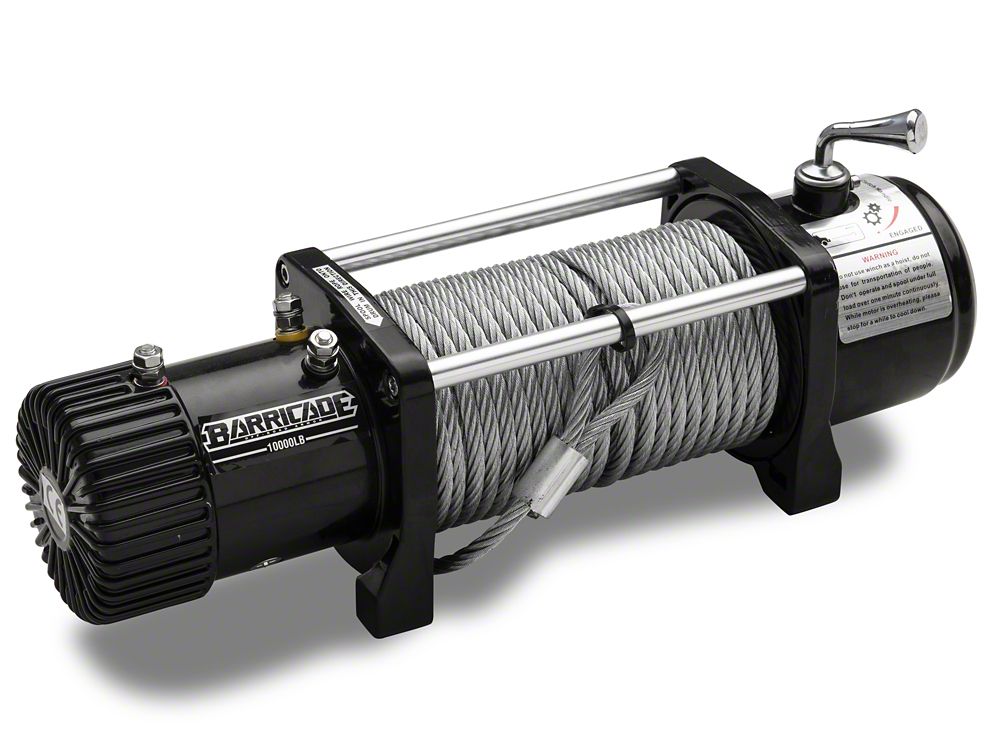

Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

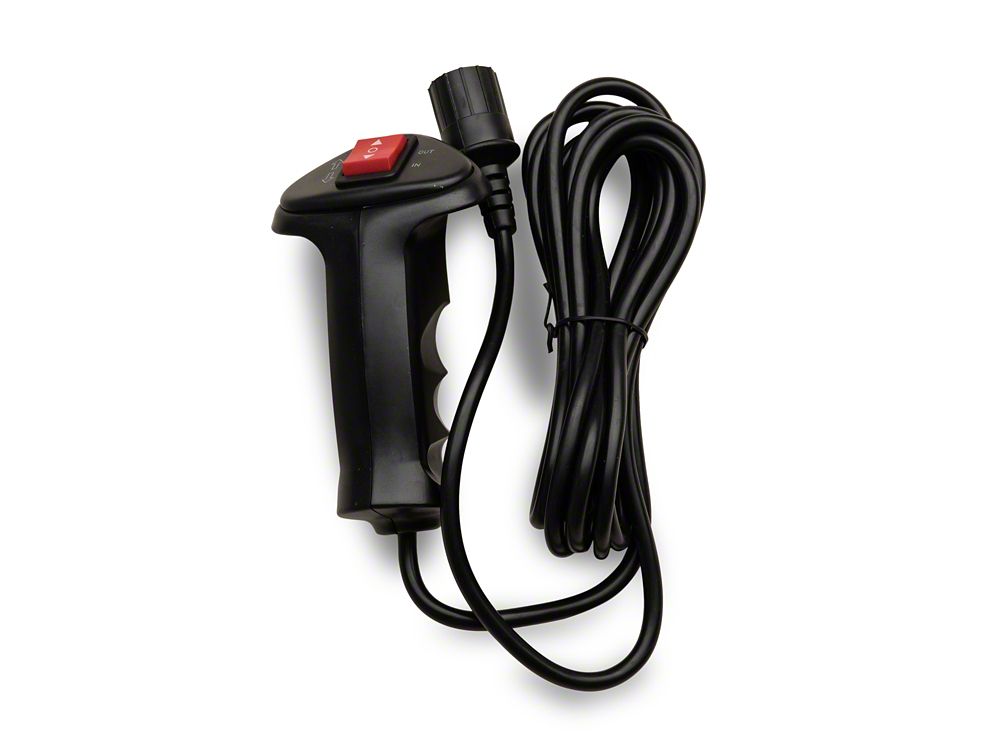

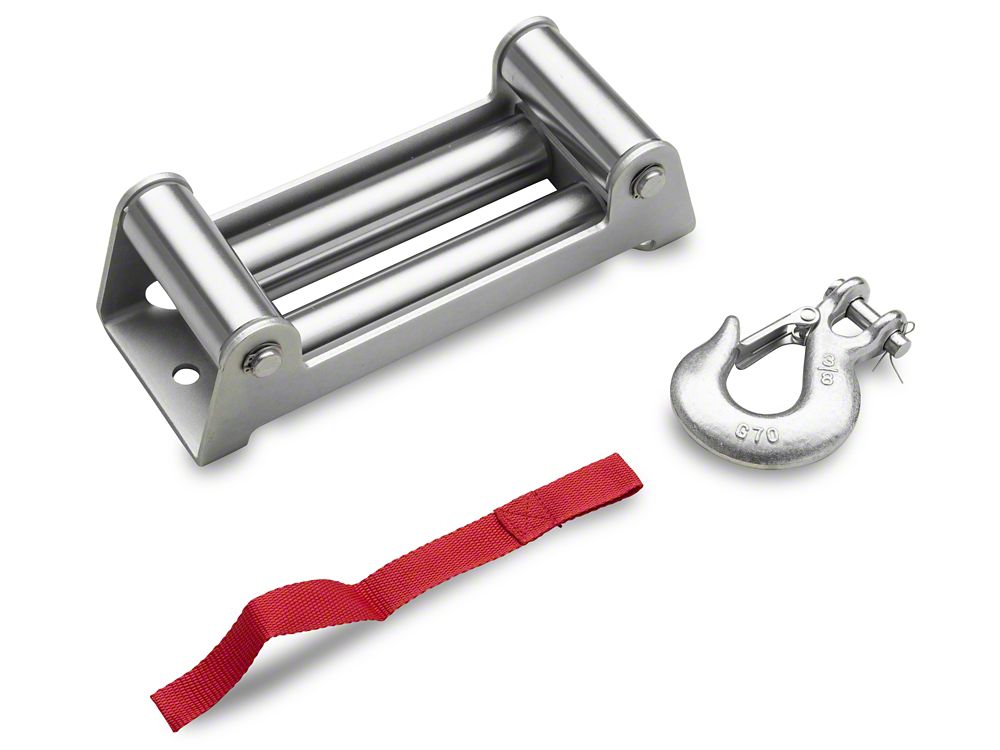

Additional Features. This Barricade Off-Road 10,000 lb Winch features a 4-way roller fairlead that helps reduce wear and tear on the cable while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch is designed for use on all Jeep CJ and Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. – 16.5 ft./min
- 2000 lbs. – 13.68 ft./min
- 4000 lbs. – 11.55 ft./min
- 6000 lbs. – 8.9 ft./min
- 9500 lbs. – 6.43 ft./min
Technical Note. To prevent damage to the cable from the elements a winch cover is highly recommended when not in use.
Got winch in open box have been using it constantly either on the trail or at my shop to move dead or shelled cars around
The winch was easy to install, works great and I was very happy with the ease of fitment to my 2018 JK Wrangler. Price was good and I’m satified with purchase. No adaptation required to my Barricade bumper.
I’ve never had a Jeep, or a winch, so my experience is limited, but this thing is a serious addition! Smooth, powerful, and not over-the-top expensive. I’m going to add a synthetic cable soon though.
Great winch great price used it once already and it did not disappoint
I installed this winch on my Barricade bumper and everything lined up perfectly. My only minor complaint is that the red power cable is a little short and you have to get creative when running it to the red terminal but it will make it.
