Description
Pulling Capacity. The Barricade Off-Road 12,000 lb. Winch delivers everything you need for a safe off-roading experience. If you consider yourself an off-roader, you know the importance of having a winch even on the easiest of trails. When you are searching for a winch, you want to make sure you get one worth your money, that will work every time, without ever having to worry if it will function or not, then this winch is what you need.
Heavy Duty Winch. Barricade Off-Road builds this winch with budget and quality in mind. The 6.6 hp motor with a gearbox boasting a 187.2:1 gear ratio can pull you and your friends out of the messiest of situations, and is rated for a max pull weight of 12,000 lbs. The winch case is completed in a durable black powdercoat finish for long lasting protection against corrosion.
Winch & Line Specs. With 94 feet of 23/64 inch steel cable, you can be sure you always have enough winch rope to reach a recovery point no matter what the situation. Made to withstand the elements, the winch rope will last you for many years and many recoveries. The 12 foot lead on the rubberized remote ensures you can always reach your winch control box, even from inside of your F-150.

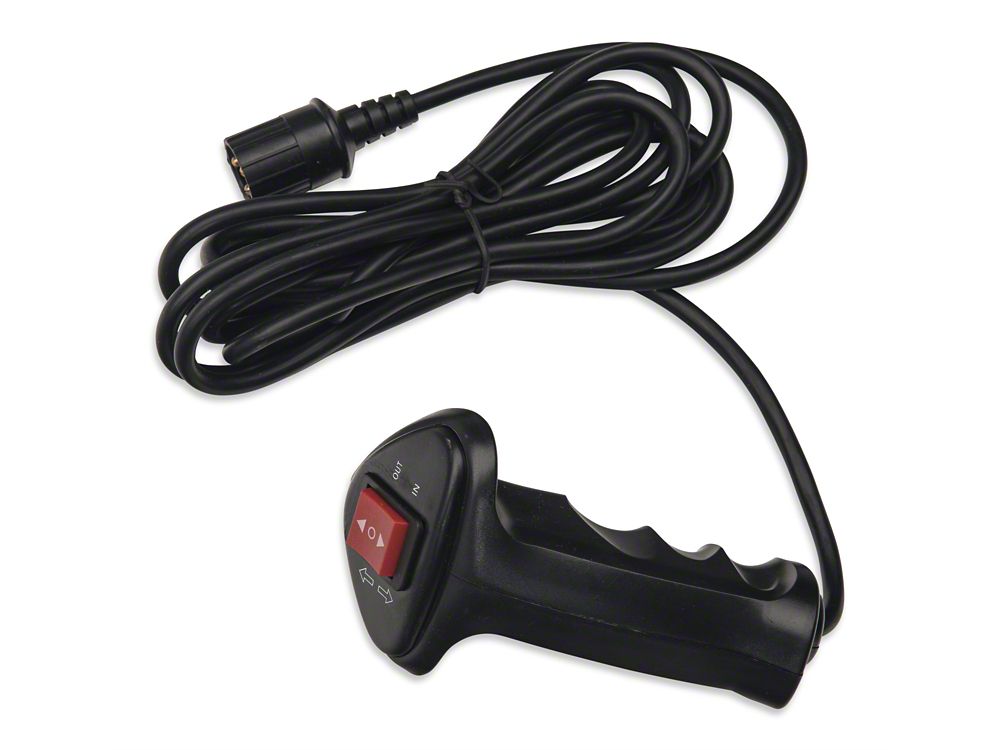

Accessories. This winch comes with a 23/64 inch steel winch cable, hook, remote control on a 12 foot lead, and roller fairlead.
Application. This Barricade Off-Road 12,000 lb. Winch is designed for use on all 1997 to 2024 F-150s, including the FX2, FX4, Harley Davidson, King Ranch, Lariat, Limited, Platinum, STX, SVT Raptor, XL and XLT models.
Line Pull Speeds
- 0 lbs. – 33.3 ft./min
- 4000 lbs. – 16.8 ft./min
- 6000 lbs. – 12.8 ft./min
- 8000 lbs. – 10.1 ft./min
- 10000 lbs. – 8.8 ft./min
- 12000 lbs. – 7.6 ft./min
As a test, I found a large tree, and let the winch pull the truck. No issues what-so-ever. It was actually a bit faster than I had anticipated.
The only installation issues were mounting of the control box (not enough space on top of the unit) and where to connect to the battery.
A custom-made, but simple, bracket solved the mounting problem using the same approach as shown in the video.
I replaced the ends of the factory battery cables (for the starter) with loop-style lugs. I found battery terminals from a local auto parts store and fastened all the cables to the clamp bolts. Worked just fine.
Their install video is real cute with the mounting plate for the solenoid but they never sent it and I had to get creative mounting the solenoid. Can be a little challenging with an aftermarket intercooler as well. Build quality is great but the mount plate would have been nice. Customer service wasn’t much help with this
Arrived in good shape, install want to bad but a little modification needed for the control box to fit. It slips back into nuetral very easily so almost need a second person to hold it engaged while retracting cable
Winch looks great, but very hard to engage winch if engages at all . Fresh out of box.
I have owned this for some time and it has has been great for out in the country.
