Be Prepared For a Recovery Situation. It doesn’t matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and “be prepared” for what the trail might throw at you. That’s why you should outfit your Bronco with a reliable recovery system like Barricade Off-Road’s 10,000 lb Winch. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

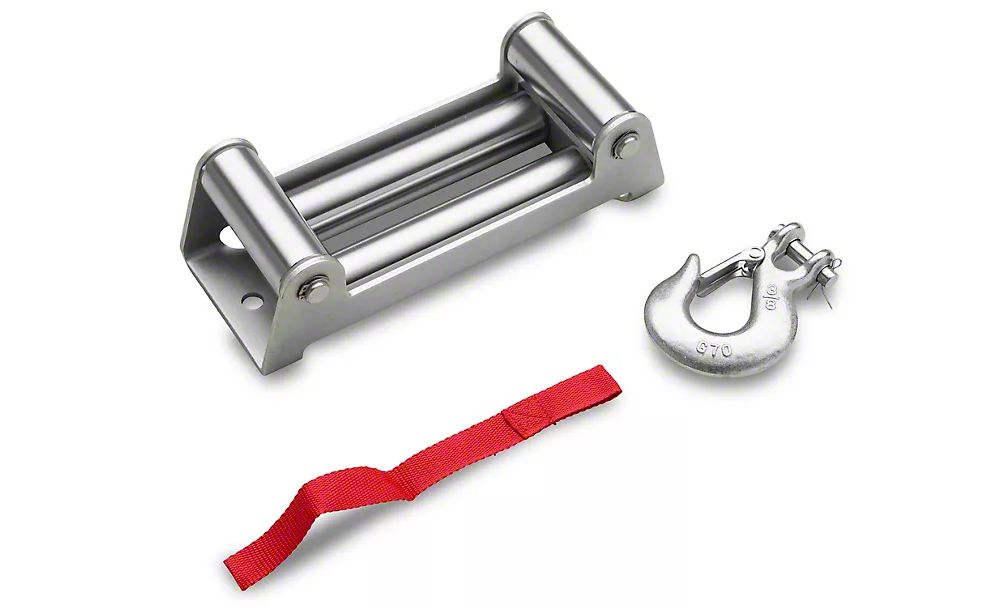

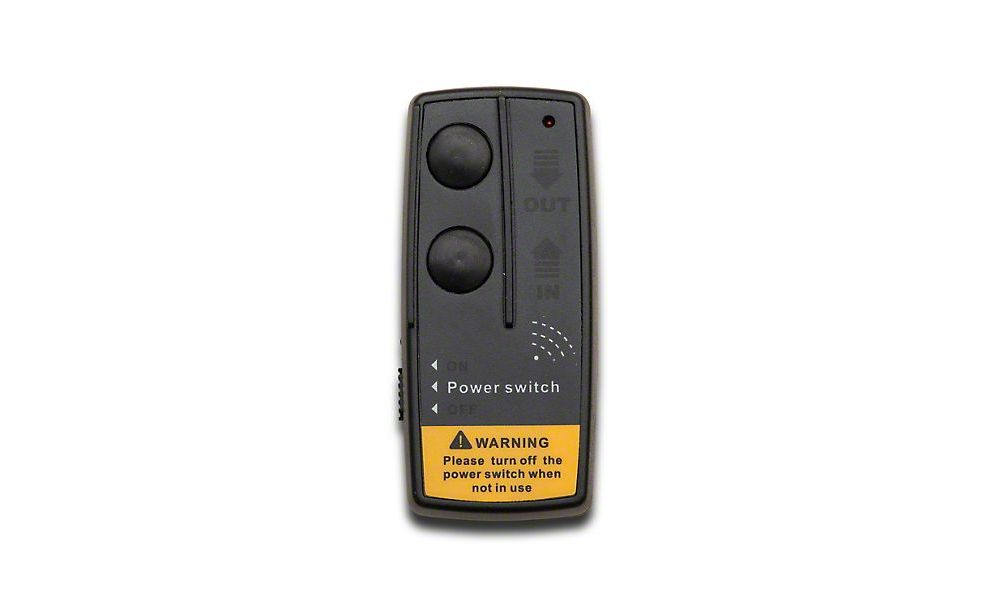

Additional Features. This Barricade Off-Road 10,000 lb Winch features a 4-way roller fairlead that helps reduce wear and tear on the cable while keeping it from binding. This Barricade Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.

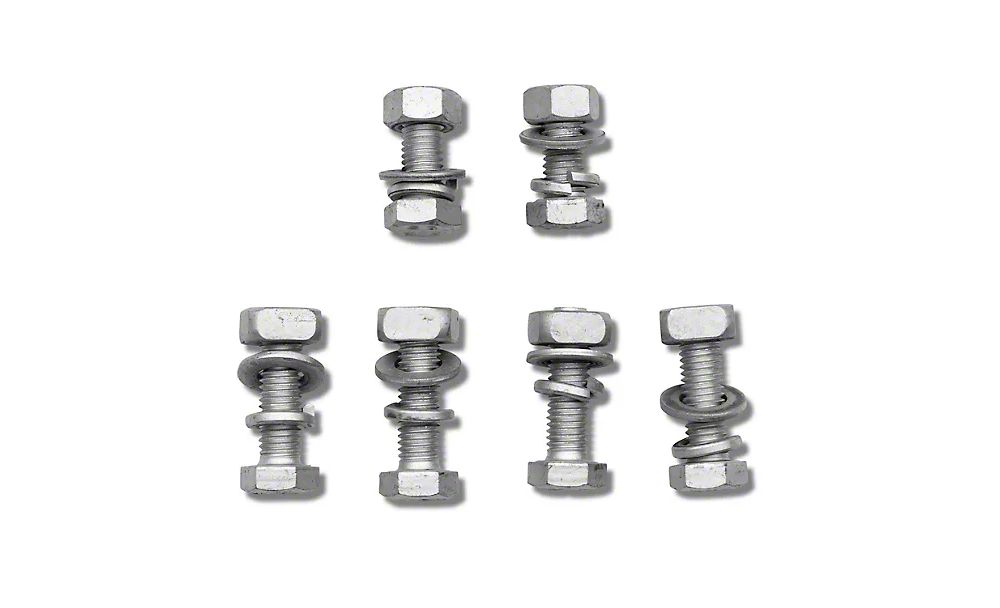

Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch with Wireless Remote is designed for use on all 2021-2023 Bronco models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. – 16.5 ft./min
- 2000 lbs. – 13.68 ft./min
- 4000 lbs. – 11.55 ft./min
- 6000 lbs. – 8.9 ft./min
- 9500 lbs. – 6.43 ft./min
Technical Note. To prevent damage to the cable from the elements a winch cover is highly recommended when not in use.
