Description
Be Prepared For a Recovery Situation. It doesn’t matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and “be prepared” for what the trail might throw at you. That’s why you should outfit your Wrangler with a reliable recovery system like Barricade Off-Road’s 10,000 lb Winch. This Barricade Winch will help you to get out of the messiest situations.

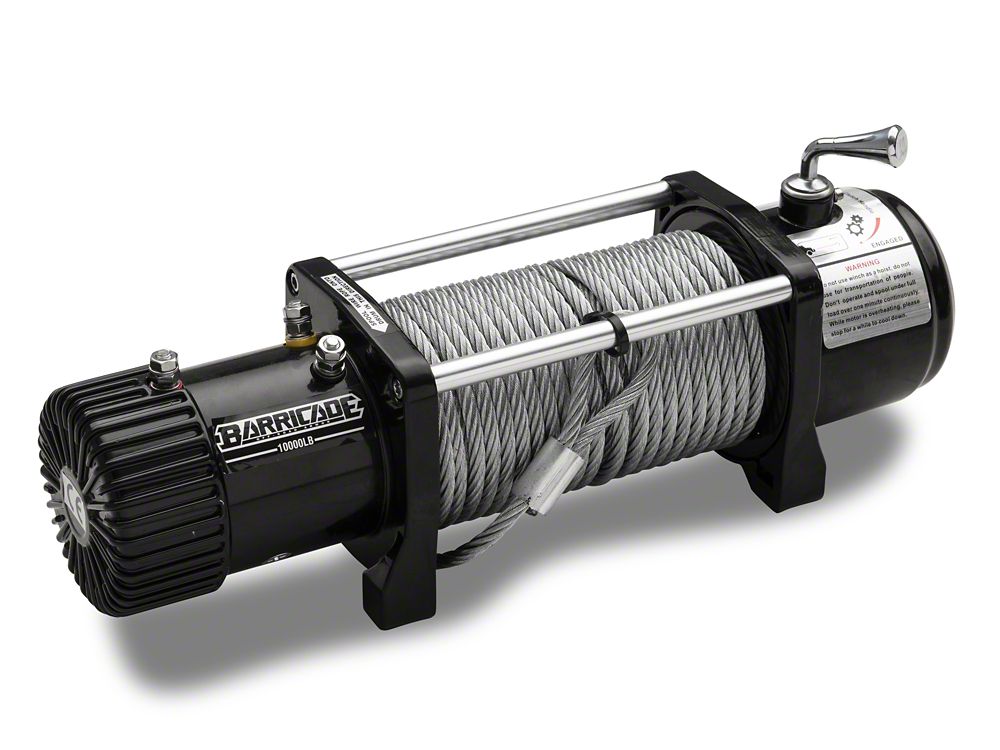

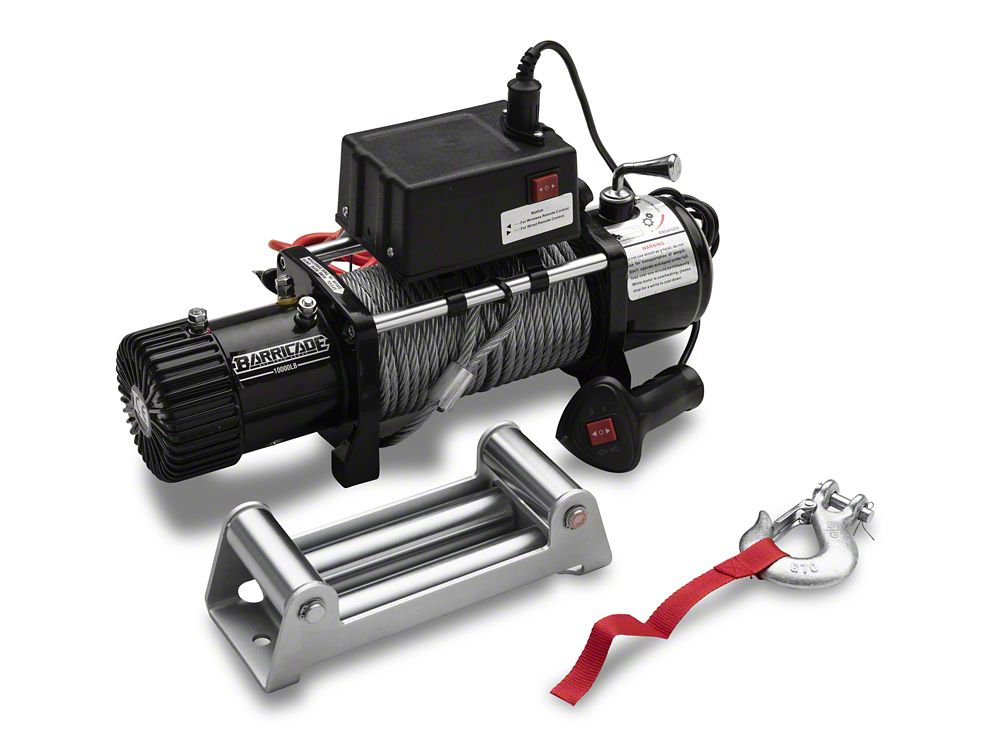

Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

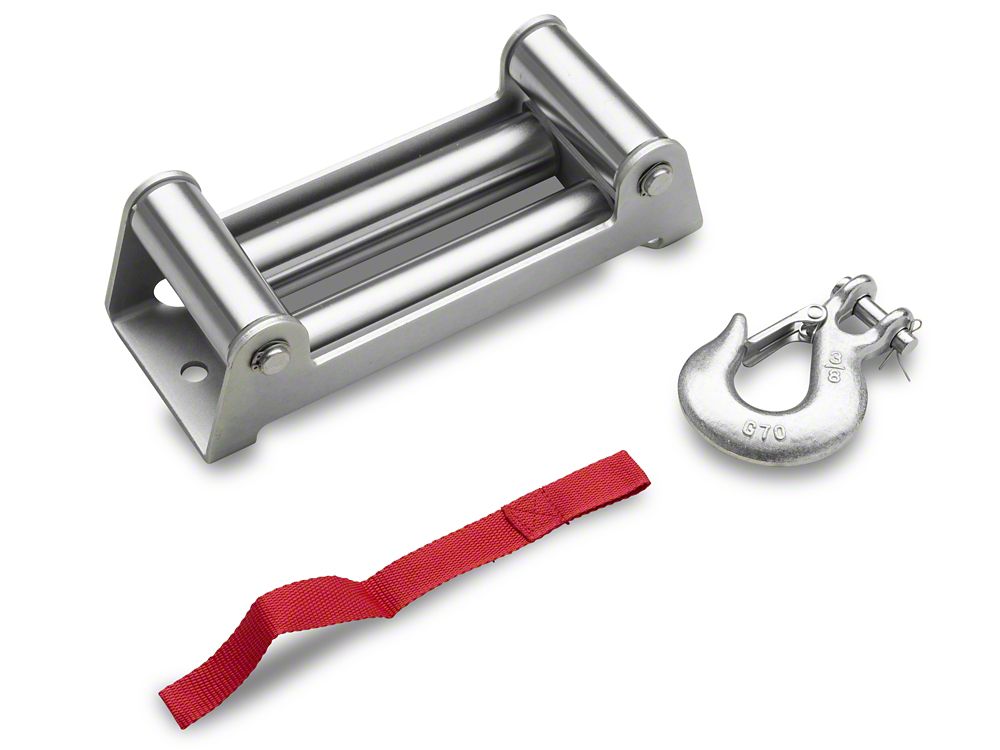

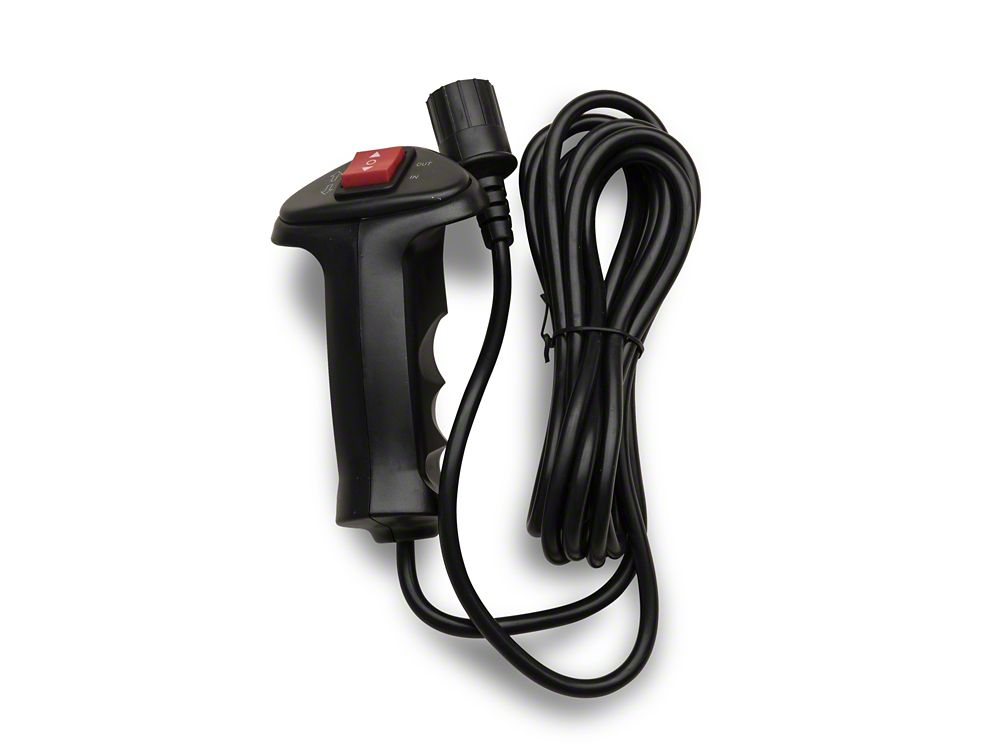

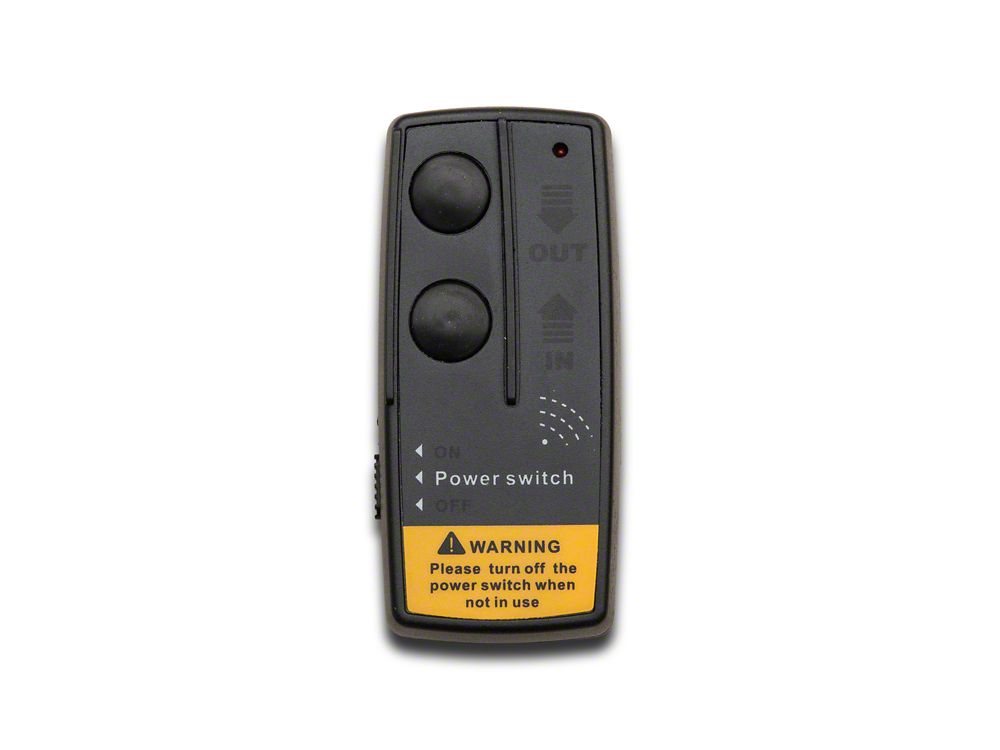

Additional Features. This Barricade Off-Road 10,000 lb Winch features a 4-way roller fairlead that helps reduce wear and tear on the cable while keeping it from binding. This Barricade Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.

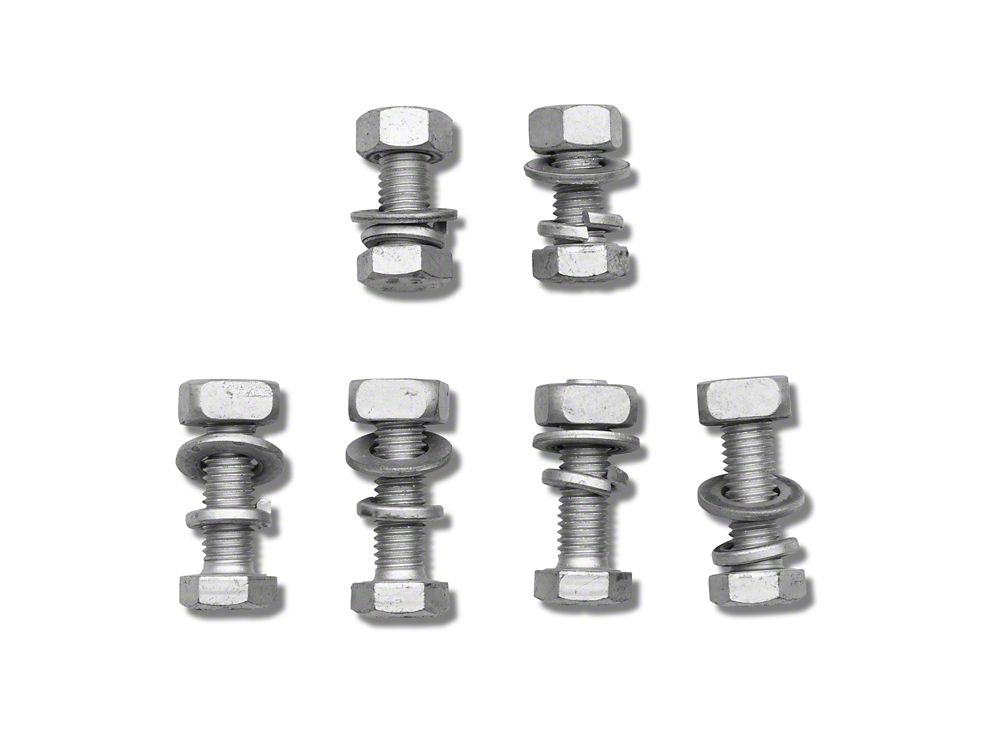

Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch with Wireless Remote is designed for use on all Jeep CJ and Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. – 16.5 ft./min
- 2000 lbs. – 13.68 ft./min
- 4000 lbs. – 11.55 ft./min
- 6000 lbs. – 8.9 ft./min
- 9500 lbs. – 6.43 ft./min
Technical Note. To prevent damage to the cable from the elements a winch cover is highly recommended when not in use.
Easy to add to Barricade front bumper. Again, directions need help. Especially route of wire to attach to battery.
Very easy install and wiring! Wireless remote works great for single person recovery situations!
Can not speak about the longevity but the winch works and pulls hard, easy to install and wire.
