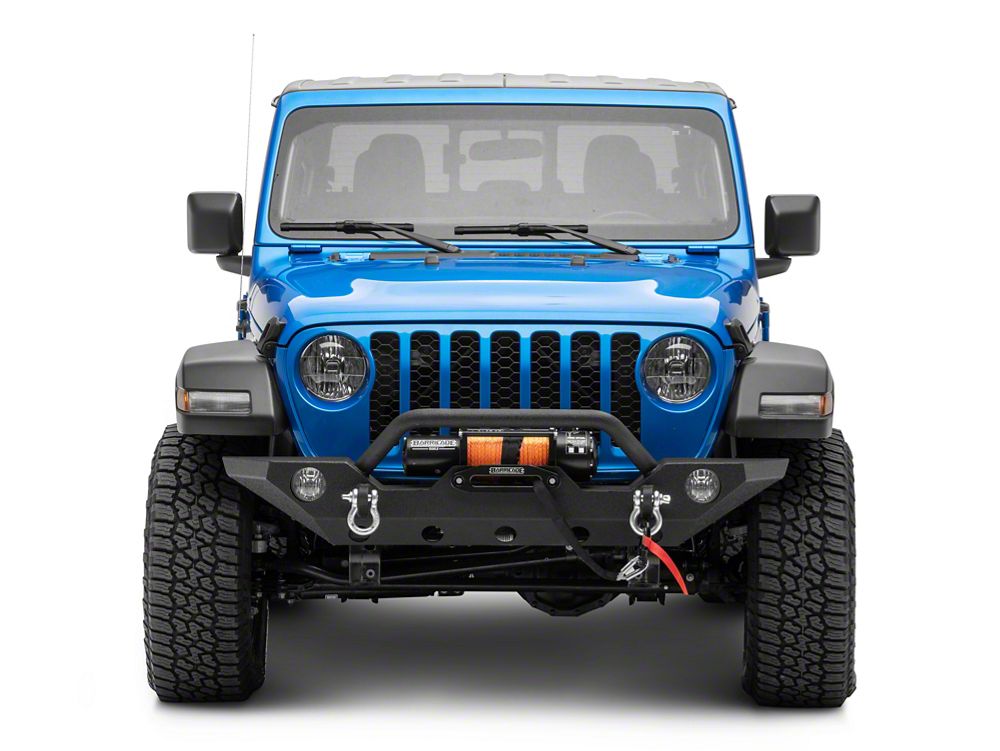

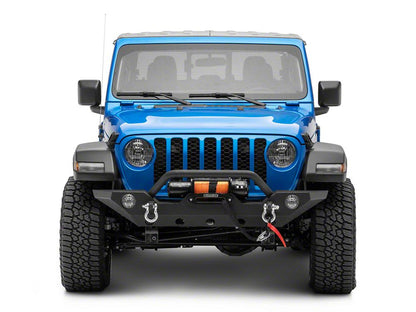

Off Road Ready. It doesn't matter if you are just getting into the hobby or are a seasoned professional, the Barricade Trail Force HD Bumper and Winch Combo Kit is the smart way to go. This Trail Force Front Bumper will provide excellent protection against road and trail hazards, while the included winch can handle the toughest of recovery situations.

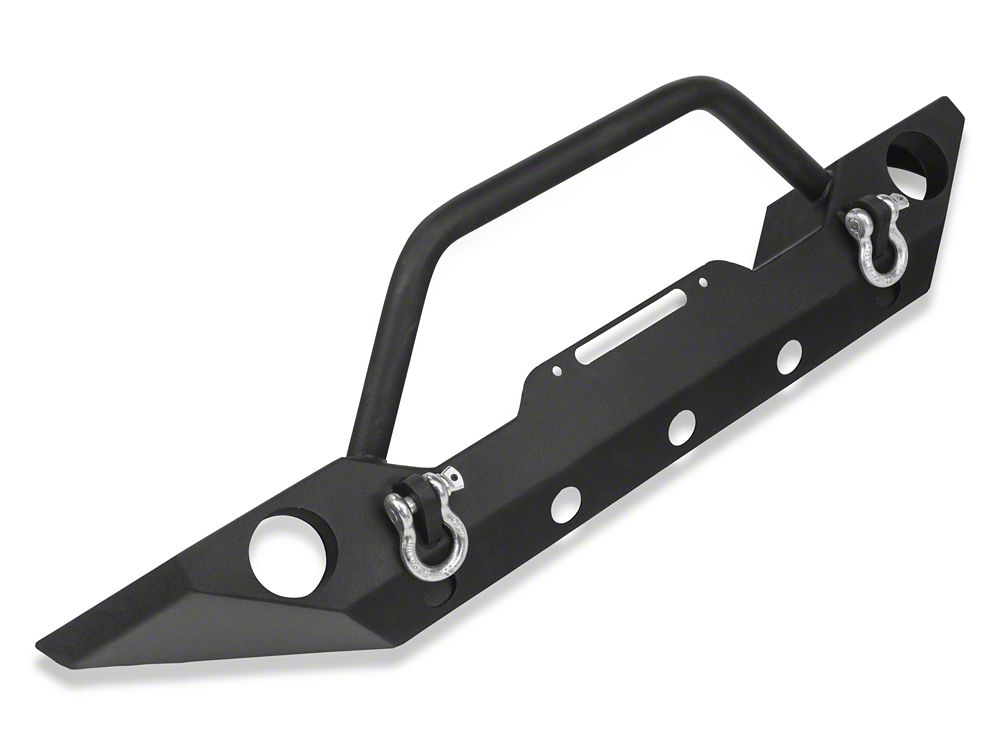

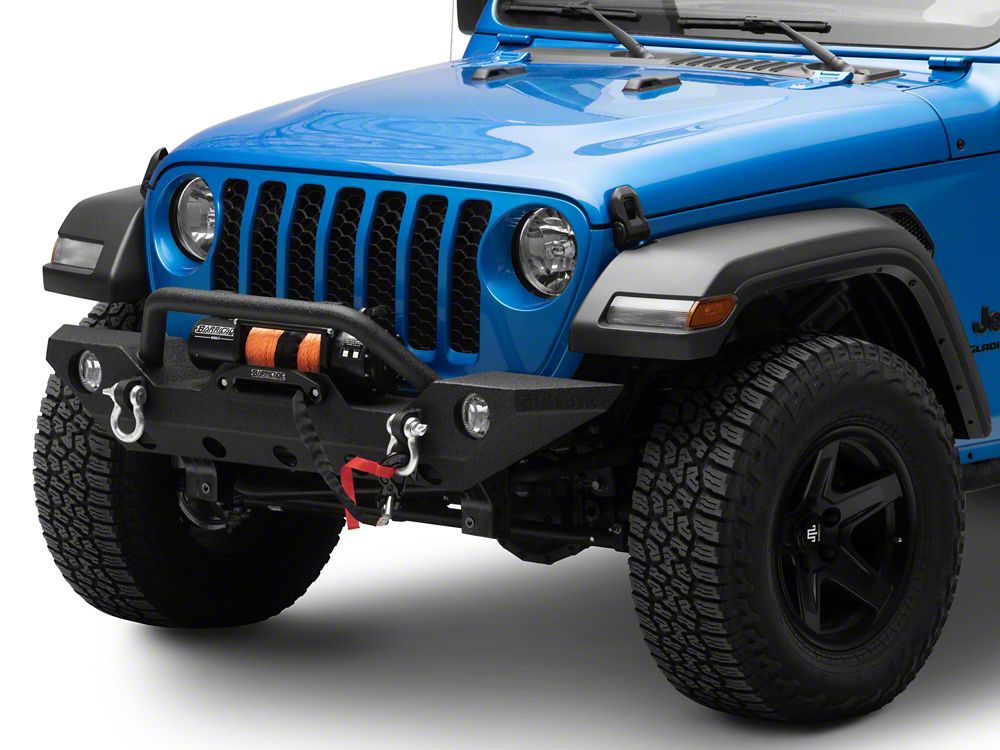

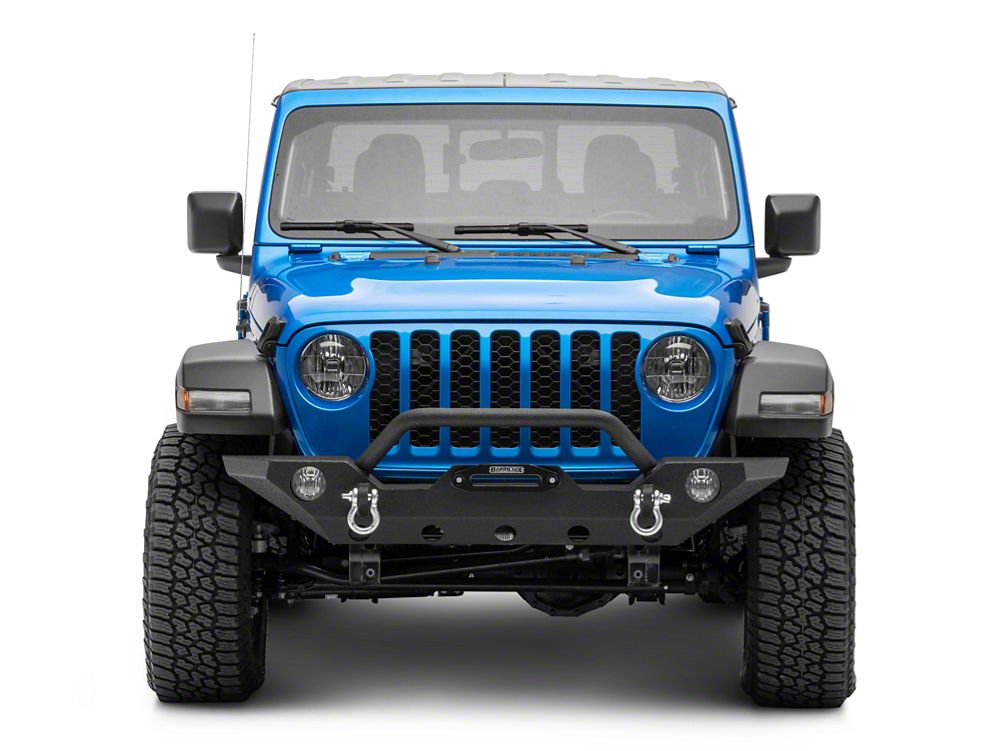

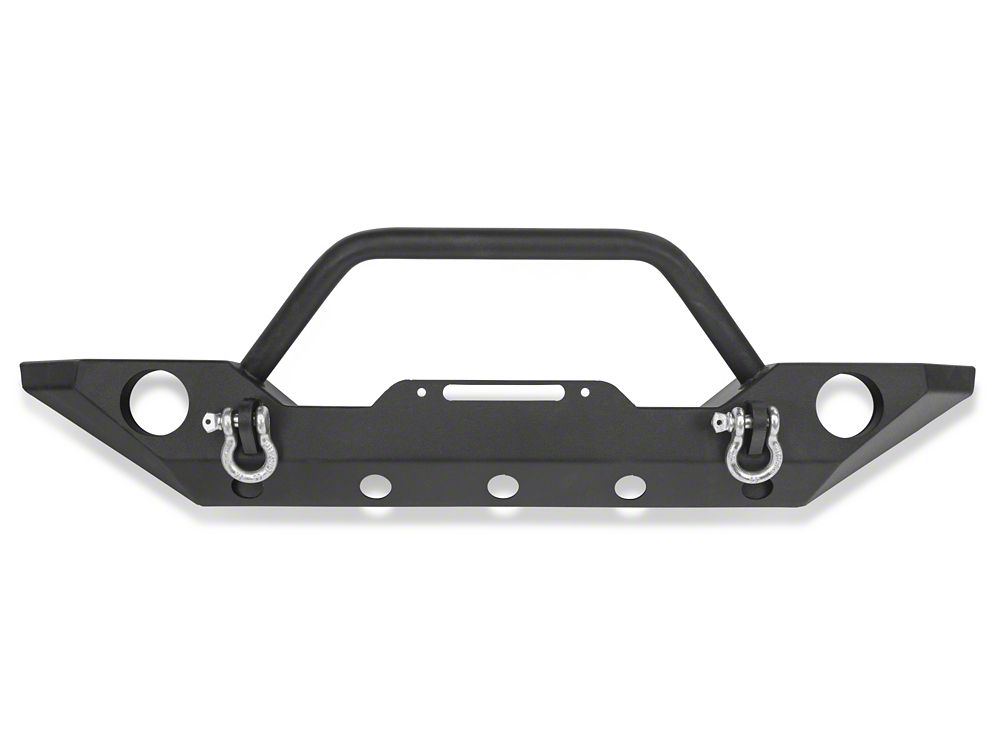

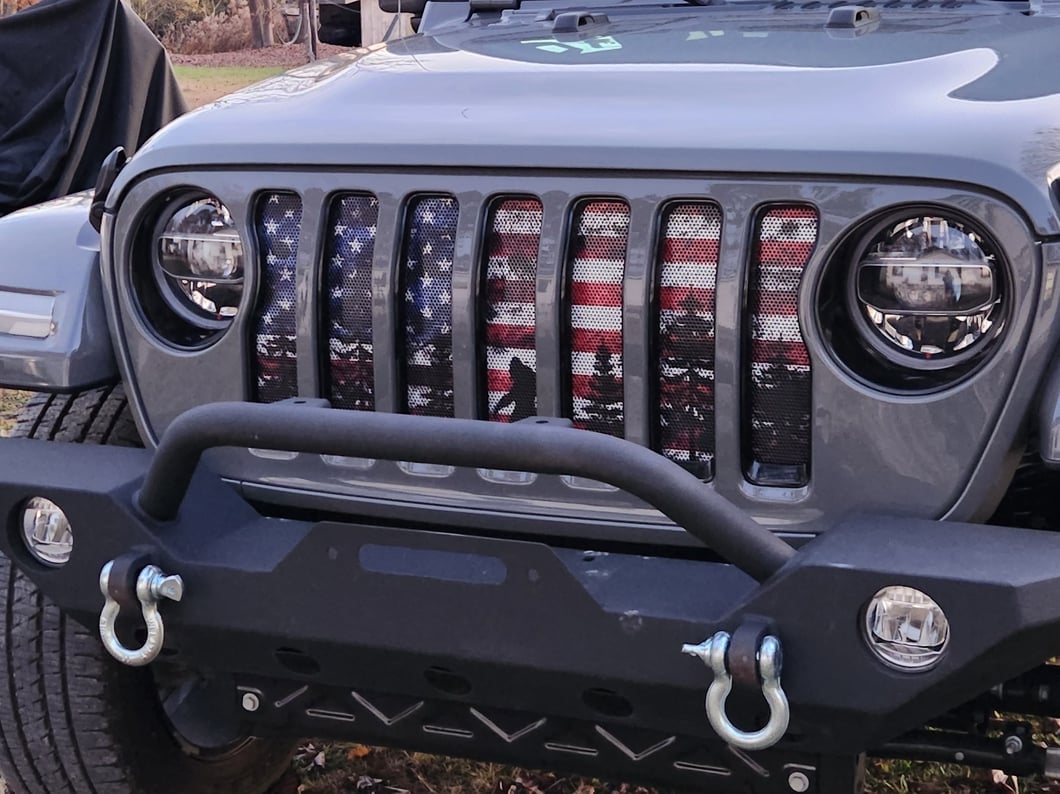

Trail Force HD Front Bumper. Barricade manufactures their Trail Force HD Front Bumper from 5/32 inch mild steel plating and 2 inch x 0.120 inch tubing for dependable durability. The D-Ring mounts are welded on both the inside and the outside for additional strength. Barricade then completes the entire Bumper in a rugged two stage finish, using epoxy pre-coating and a high-grade textured black powder coating. As an added bonus, this Trail Force HD Bumper also features integrated light mounts that allow you to install two fog lights and two auxiliary lights. Lights are not included - sold separately.

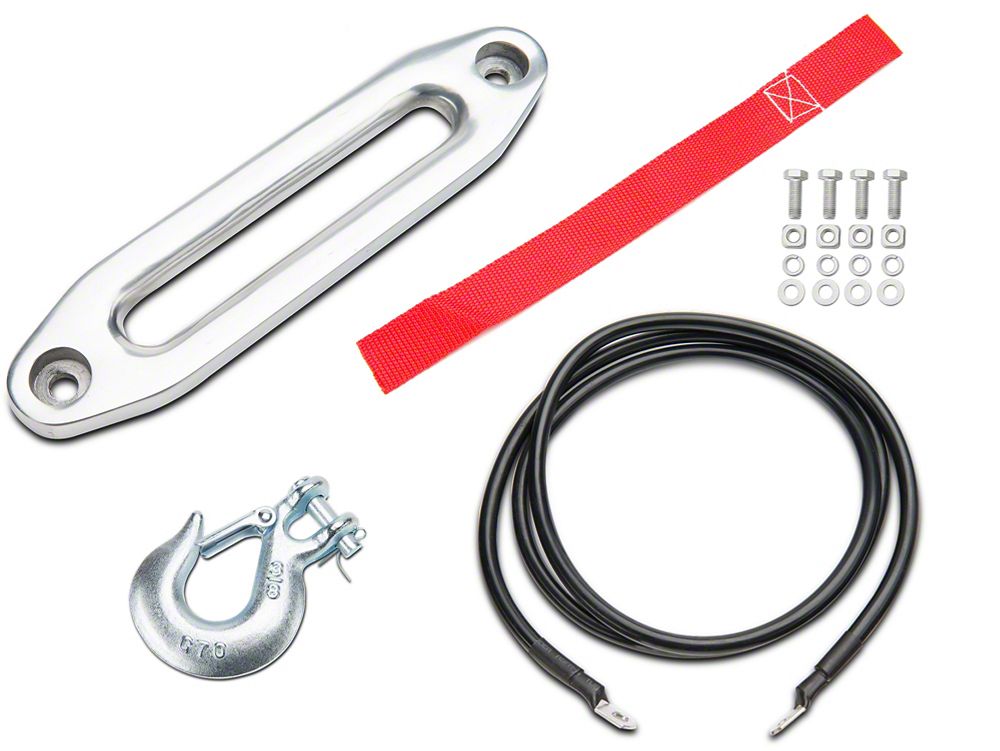

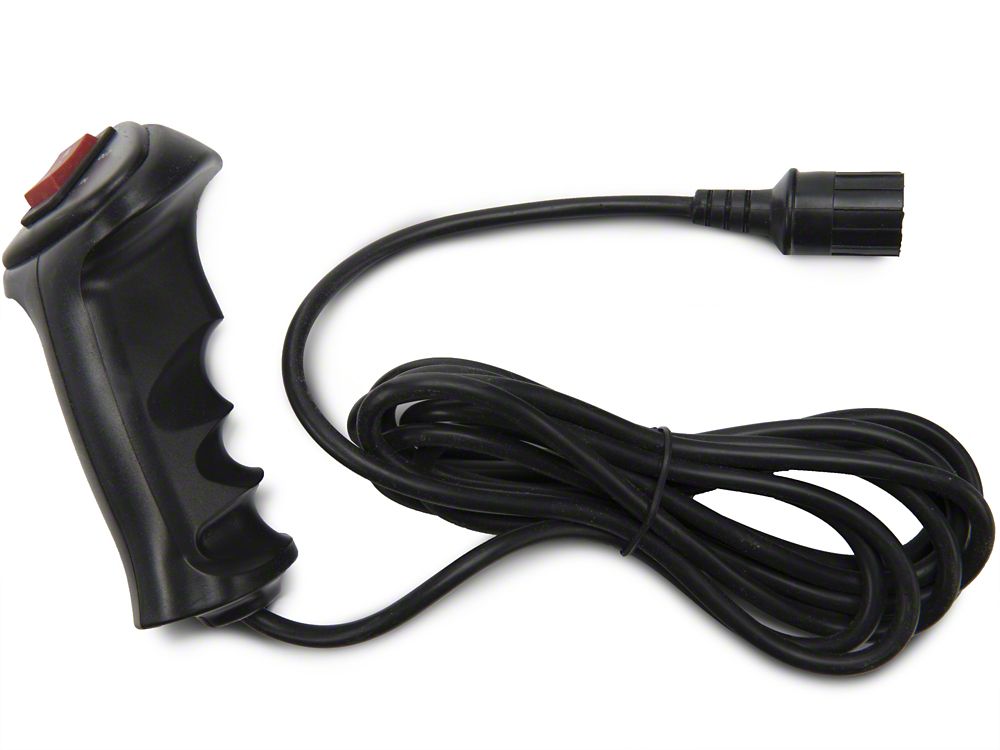

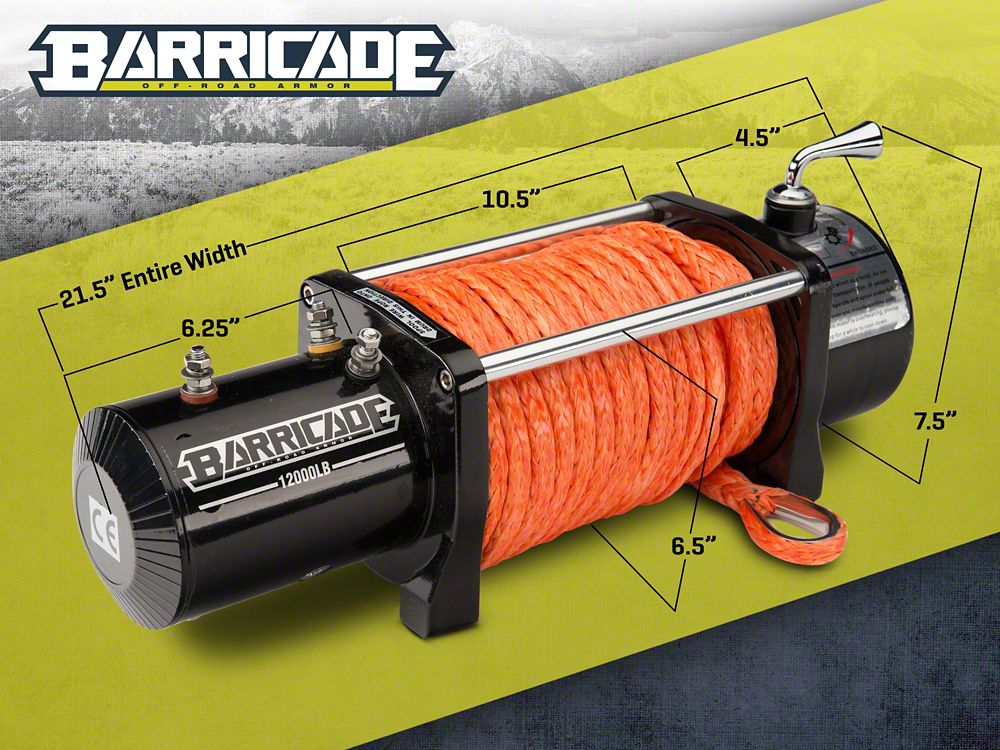

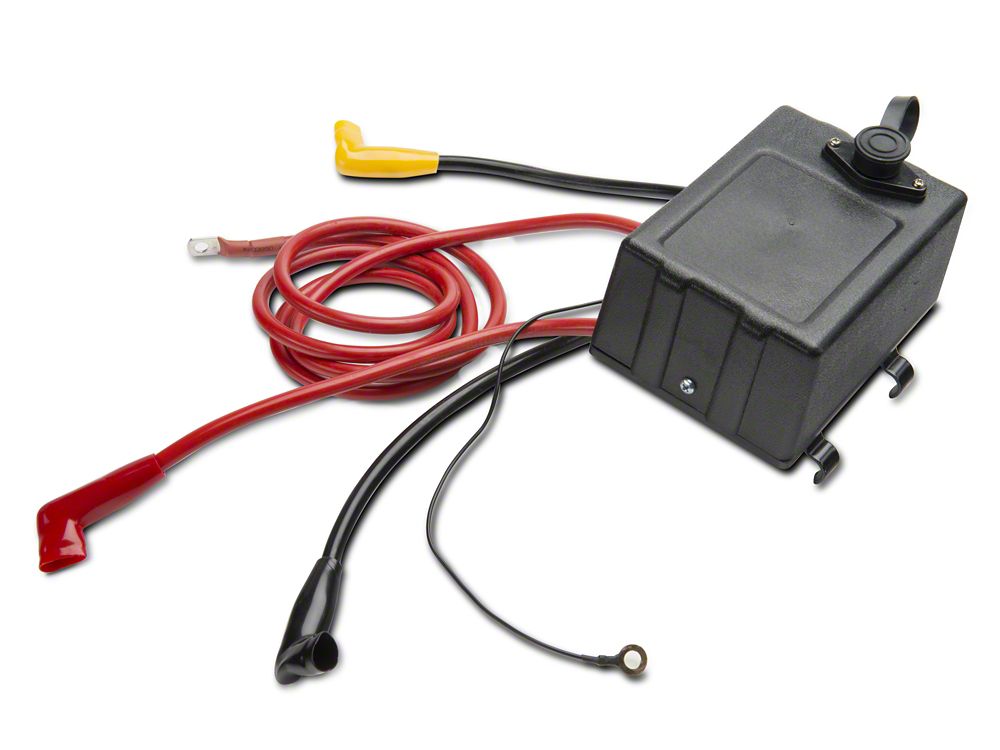

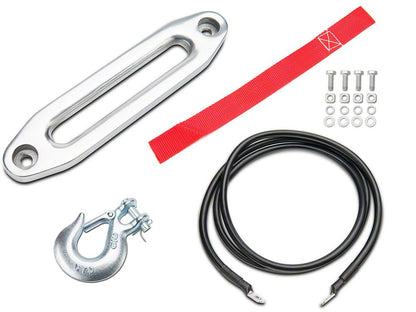

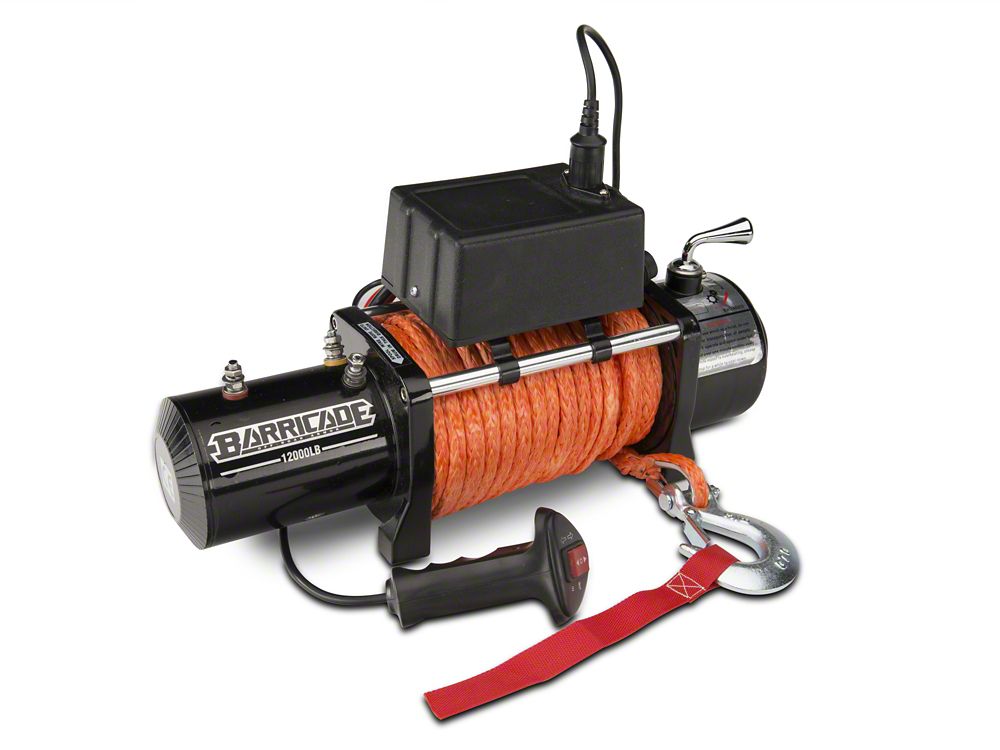

Heavy Duty 9500 LB Winch. The included Barricade Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Winch provides 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig. A Hawse fairlead helps to reduce wear and tear on the included 94 foot long Dyneema SK75 Synthetic Rope. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their Bumper and Winch Combo Kit to be a direct bolt-on upgrade using just basic hand tools. There is no cutting or drilling required for a clean, straight forward installation. With the help of a friend, installation can be completed in about 3 hours.

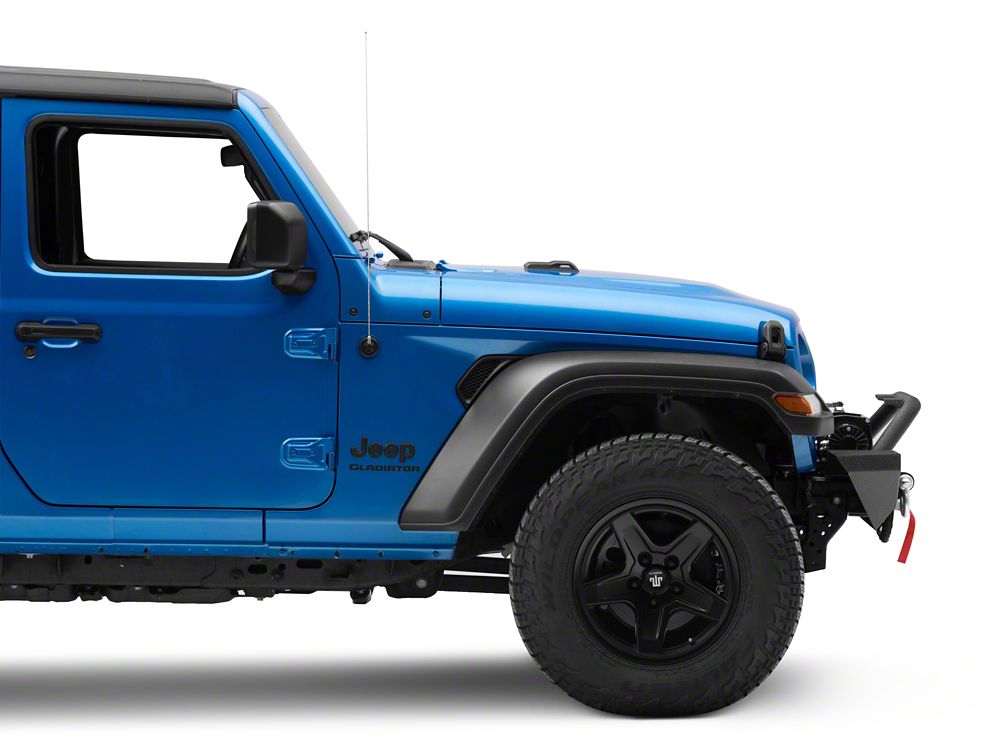

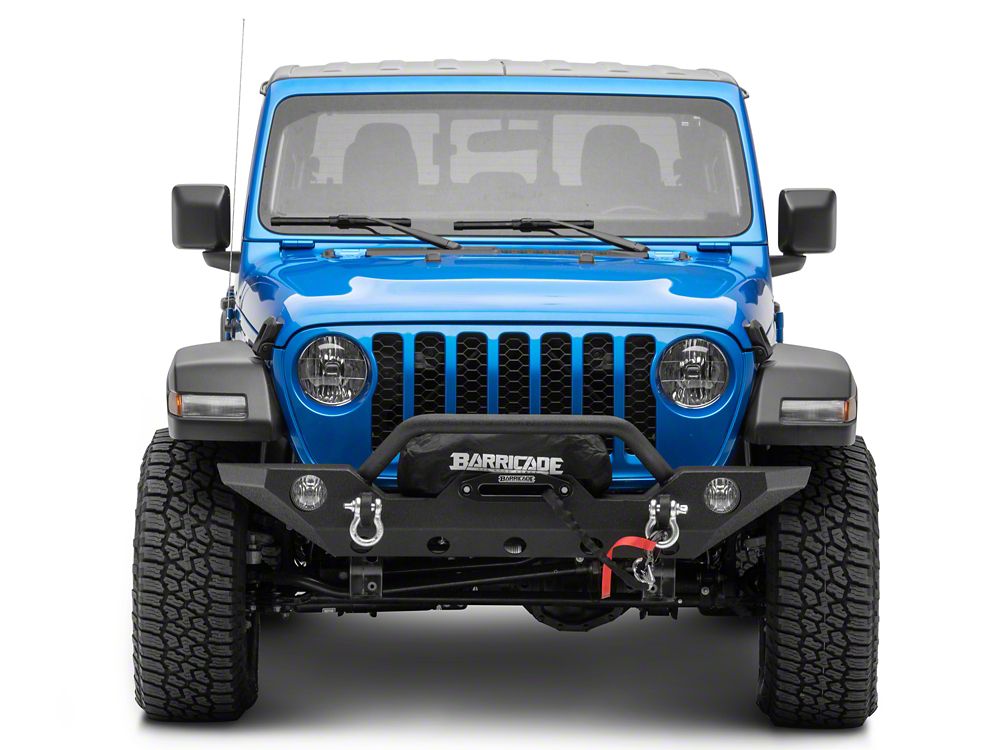

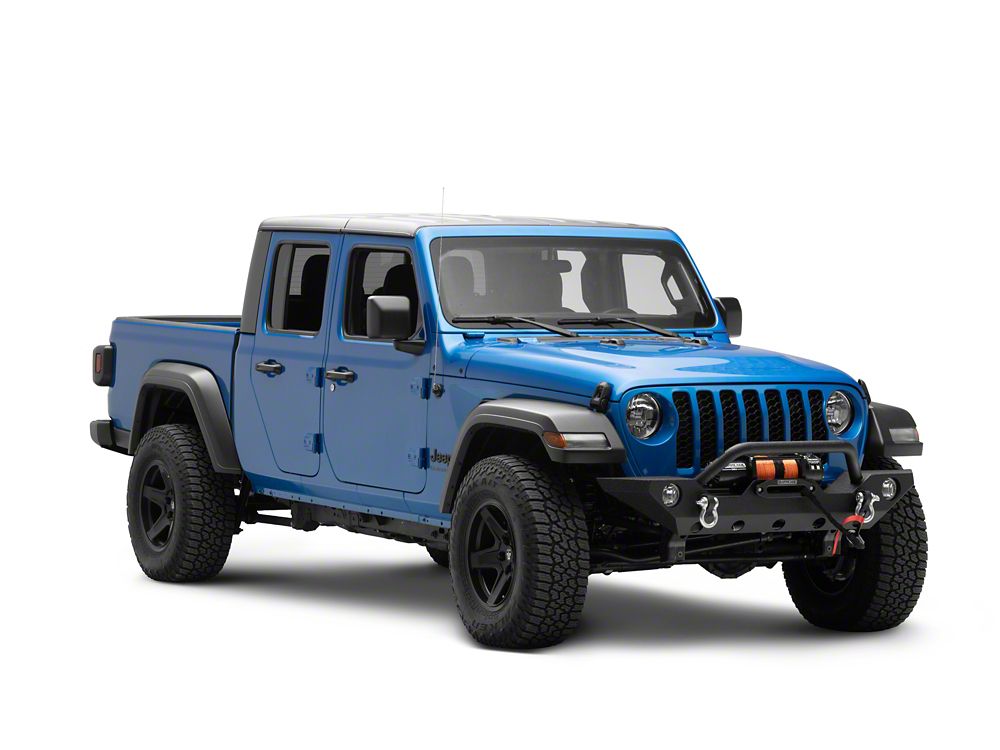

Application. This Barricade Off-Road Trail Force HD Front Bumper and 9,500 lb. Winch with Synthetic Rope Combo kit is specifically designed for use on 2020-2025 Jeep Gladiator JT models.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
Please Note. This Barricade bumper supports up to 10,000 lbs. of flat-tow capability using the included D-Rings or integrated tow hooks.
