Barricade

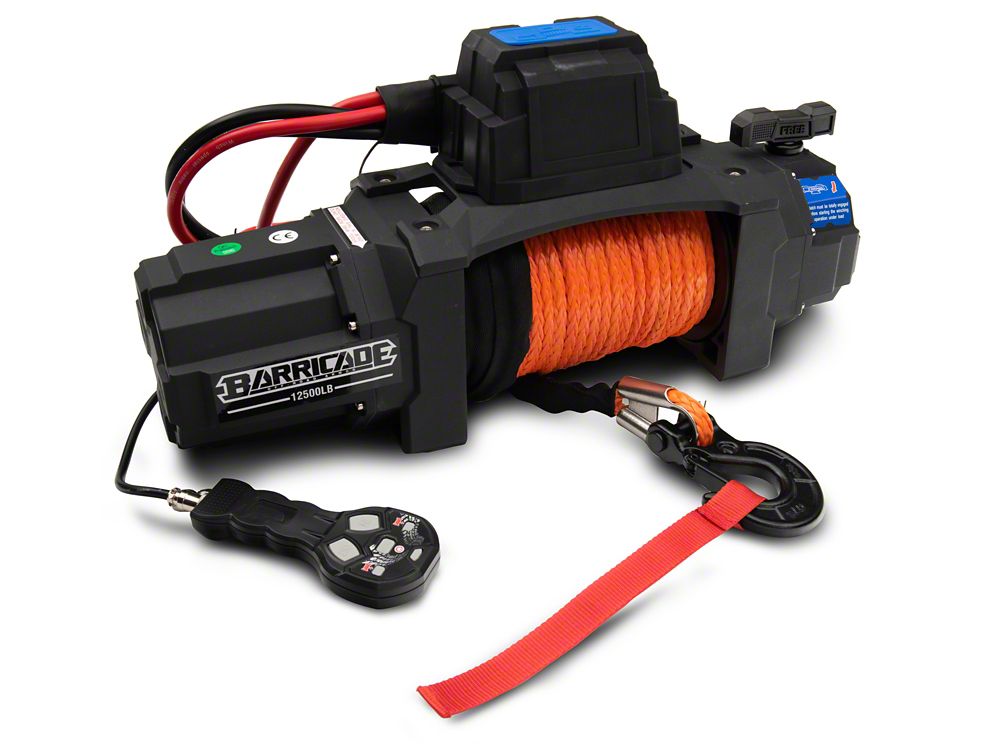

Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)

Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)

$577.99
$577.99
Sale Sold out
Shipping calculated at checkout.

Out of stock
J154342
View full details
  • Description
  • Additional Info
  • Reviews

Be Prepared. Whether you are a novice or a serious off-roader, you should take a page out of the Scout's hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your rig with a reliable recovery system like Barricade Off-Road's 12,500 lb Heavy Duty Winch. This Barricade Winch will help you to get out of the messiest situations.

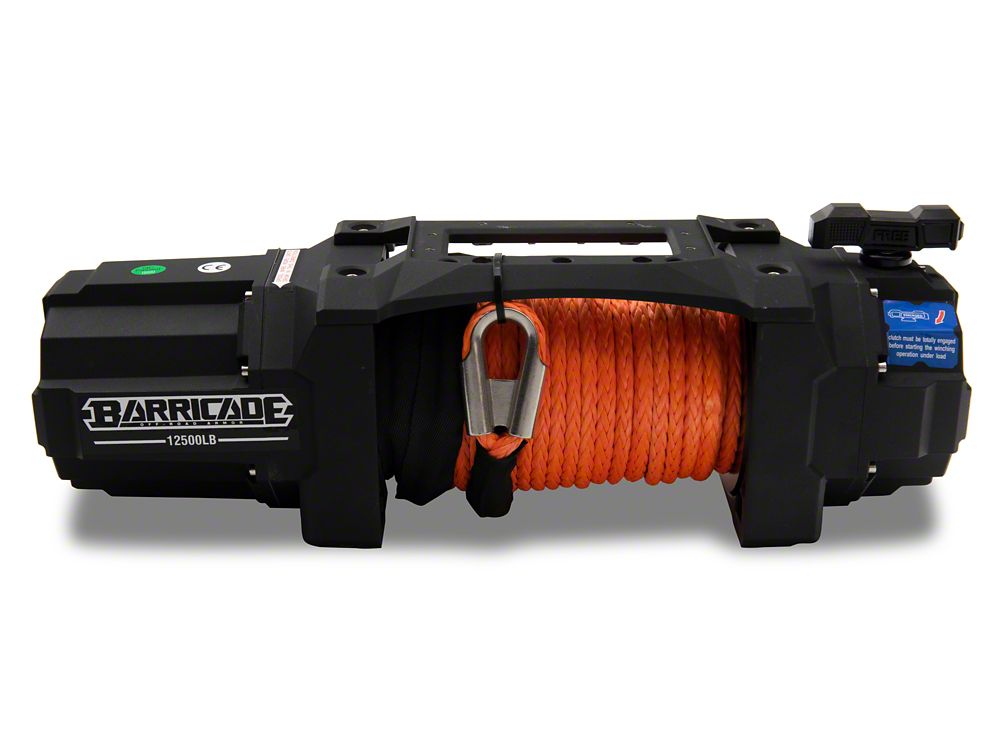

Heavy Duty 12,500 Pound Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 horsepower series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 216:1 gear ratio, this Barricade Winch provides 12,500 pounds of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

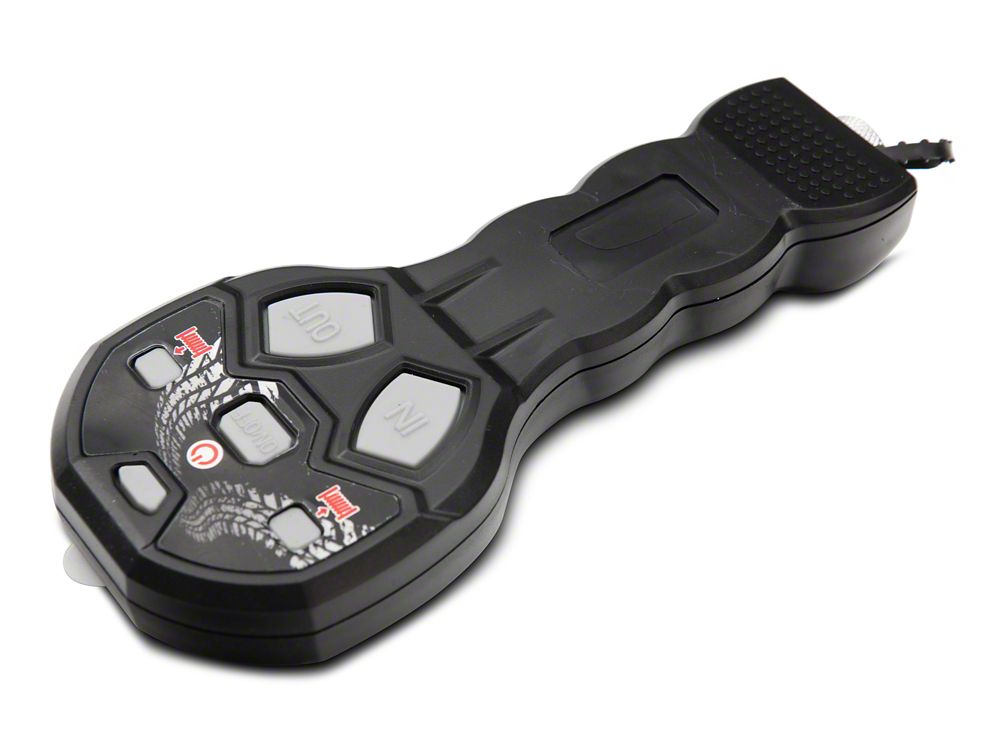

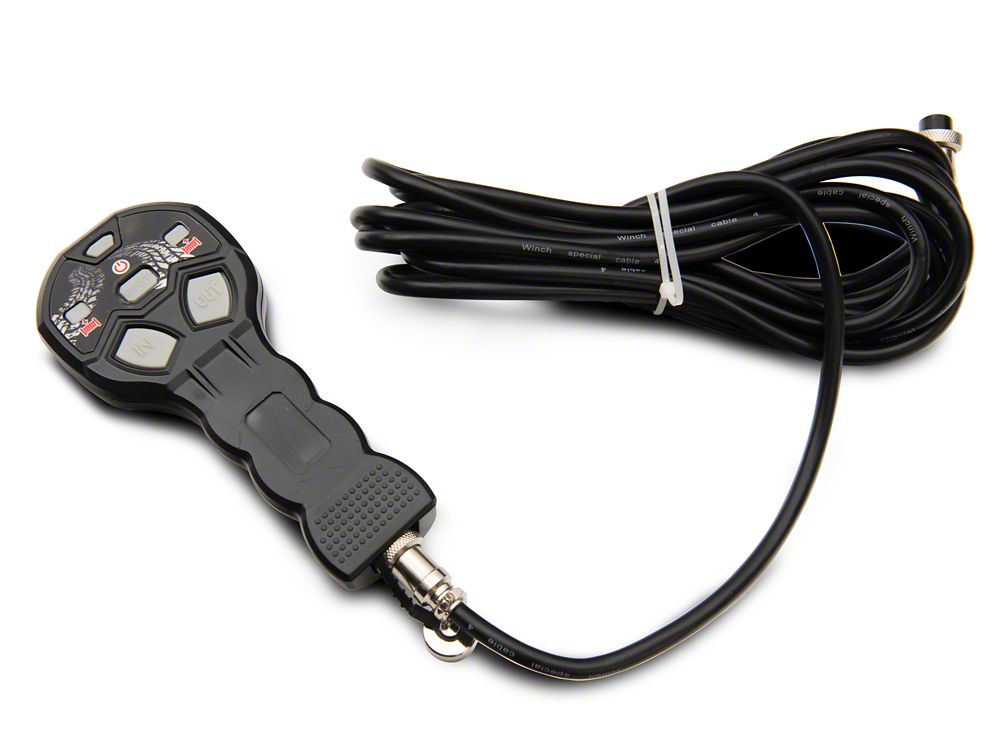

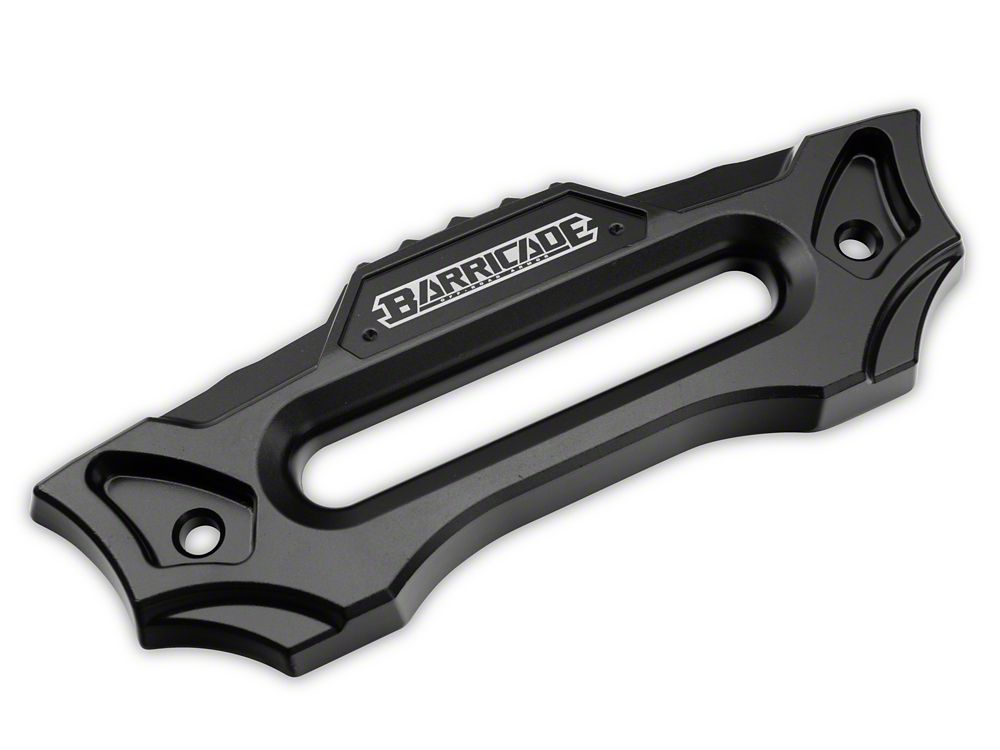

Additional Features. This Barricade Off-Road 12,500 pound Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the included bright orange synthetic rope while also keeping it from binding. This Barricade Winch also includes a wirless remote control allowing you to safely stand clear when in operation.

Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 22.17 × 6.38 × 7.72 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

Application. This Barricade 12,500 Pound HD Winch with Synthetic Rope and Wireless Control features a universal designed allowing for use on all Jeep Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

Line Pull Speeds
  • 0 pounds - 33 feet per minute
  • 4,000 pounds - 15.1 feet per minute
  • 6,000 pounds - 13.1 feet per minute
  • 9,500 pounds - 10.5 feet per minute
  • 12,500 pounds - 9.2 feet per minute

Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Winch cover not included - sold separately.

Fitment
Vehicle
CategoryCollectionDrop

Customer Reviews

Based on 8 reviews
63%
(5)
38%
(3)
0%
(0)
0%
(0)
0%
(0)
M
Michael M
Review for Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Som...

Easy install and operation. I'm only going with 4 stars because I haven't had to use it yet. I've had it on the jeep for about 6 months, but haven't had to use it yet. It was an easy install for just one person, but the instructions are a little vague. But if you take a few minutes you'll be able to install it with no problem, just make sure you have the wires installed before mounting it to the bumper.

N
Norm L
Review for Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Som...

Very nice and durable winch. 12,500 lbs. Easy installation and operations

J
Jack C
Review for Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Som...

First, let me say this is not the easiest winch to mount on your Jeep. Poor design of where the nuts fit into the housing. Took a while to get them lined up properly. The instruction manual is just about useless. It did help with the wiring, giving me a starting point. The winch works fine, at least it would drag me across the garage floor. It looks very nice with the orange rope. All in all, it seems to be a good deal, and I would do it again.

D
David S
Review for Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Som...

First off - I'm not disappointed at all in the size. I was just noting that it extends quite far left and right. This required cutting/grinding a part of my bumper away to make room for the motor (on the left when facing the vehicle front.). Not a big deal, but it WAS a Barricade HD bumper, so that is a slight ding against the compatibility.

It looks great and works well. The wireless remote is a real plus. It took a minute to figure out how to make sure it was on, as the LED power light (and the IN/OUT lights) is extremely weak. I had to walk into the garage, close the doors and get real close to the light to see if it were on when pressing the power button.

Even the wiring instructions were wrong. The booklet says to connect the thin black wire from the controller to the "earth" terminal in the bottom of the motor. Well, there is NO extra terminal on the bottom of the motor, or anywhere else on the motor. But, knowing that earth means ground, I simply grounded to the frame near the bumper mounts. Worked just fine. Instructions would get about a 1 star rating.

D
David M
Review for Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Som...

Have not used the winch yet, but seems to be of good quality. What amazed me most though was the freaky fast shipping. I ordered Monday afternoon, arrived on my doorstep Tuesday afternoon. Winch install was simple, took less than an hour, by myself. Highly recommend.
