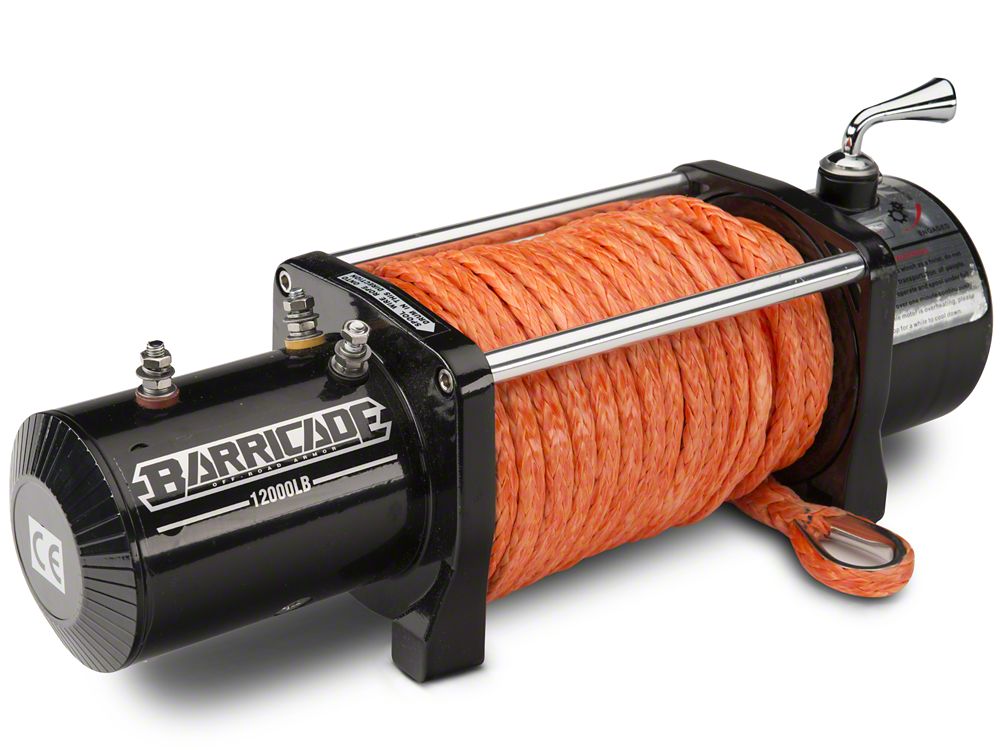

Reliable Recovery. Take a page out of the Scouts hand book and "be prepared" for whatever the trail might throw at you with a Barricade 12,000 lb. Winch. Whether your Silverado is a work truck or designated for off-road fun, Barricade's 12,000 lb. Winch with Synthetic Rope will provide the reliable pulling power you need for those times you find yourself stuck.

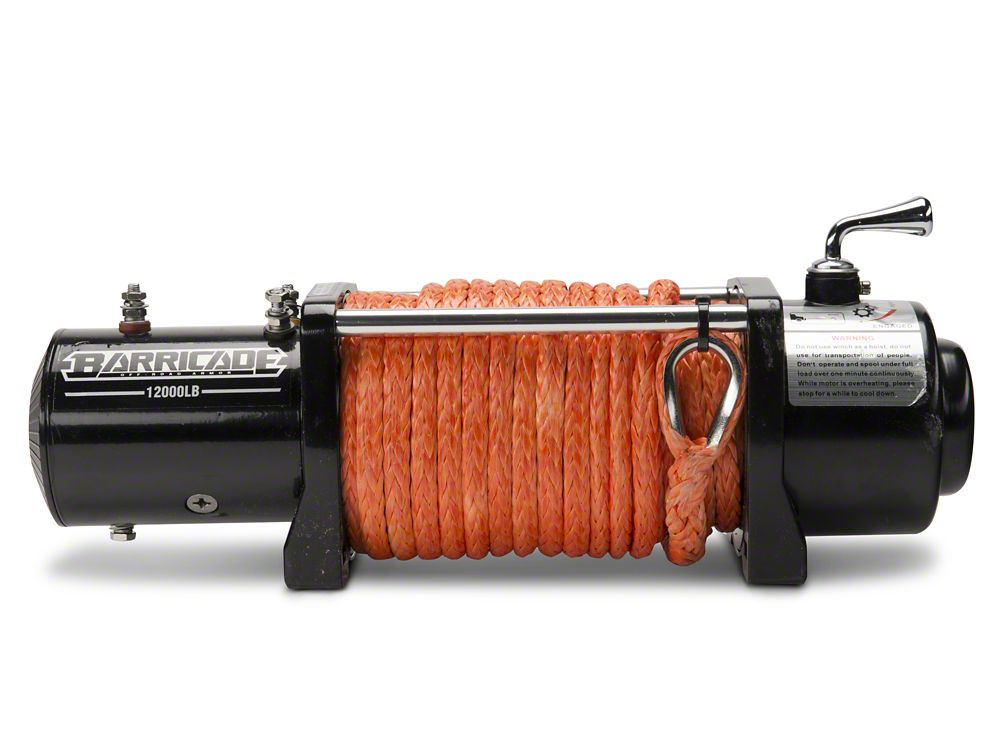

Heavy Duty 12000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch will provide 12,000lbs of pulling power. Matched with a sliding ring gear clutch and the two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

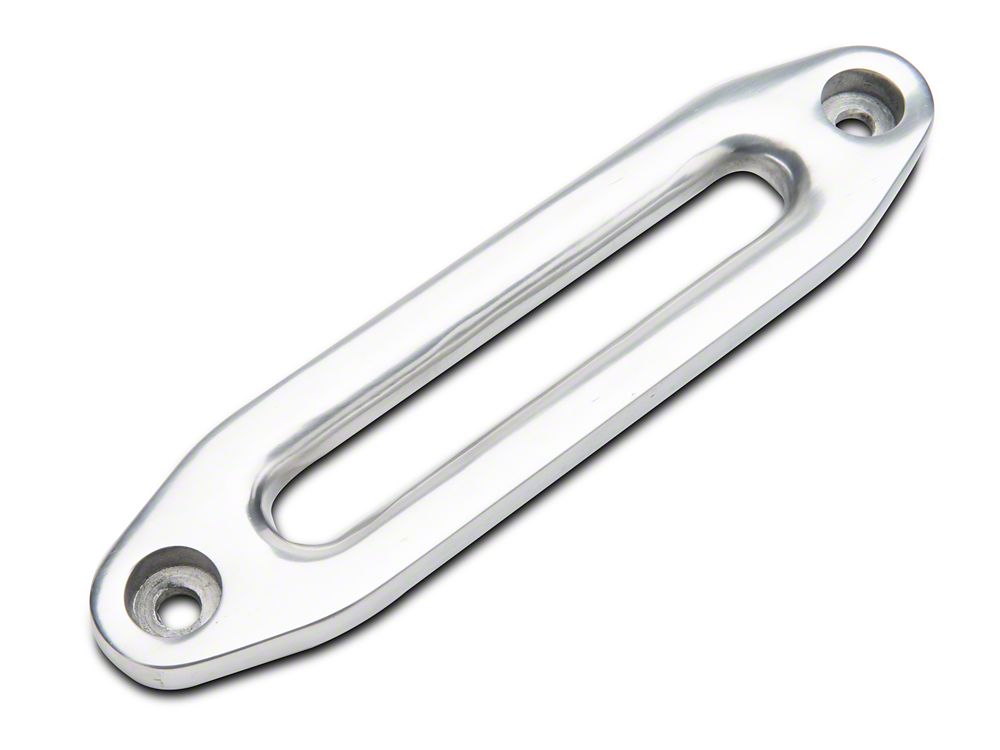

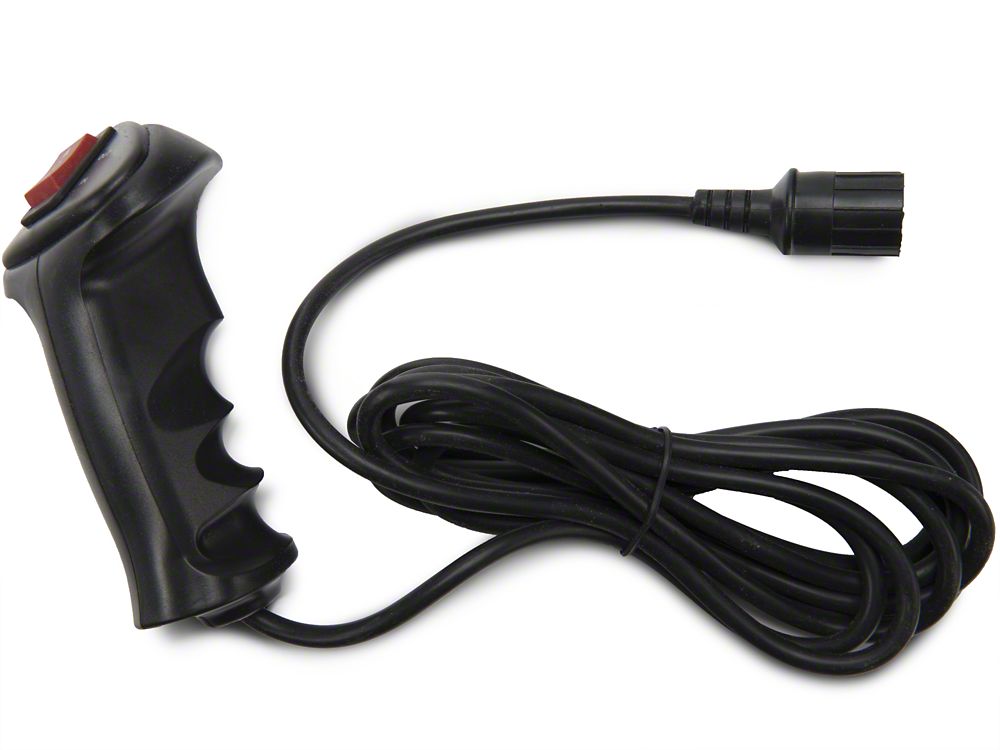

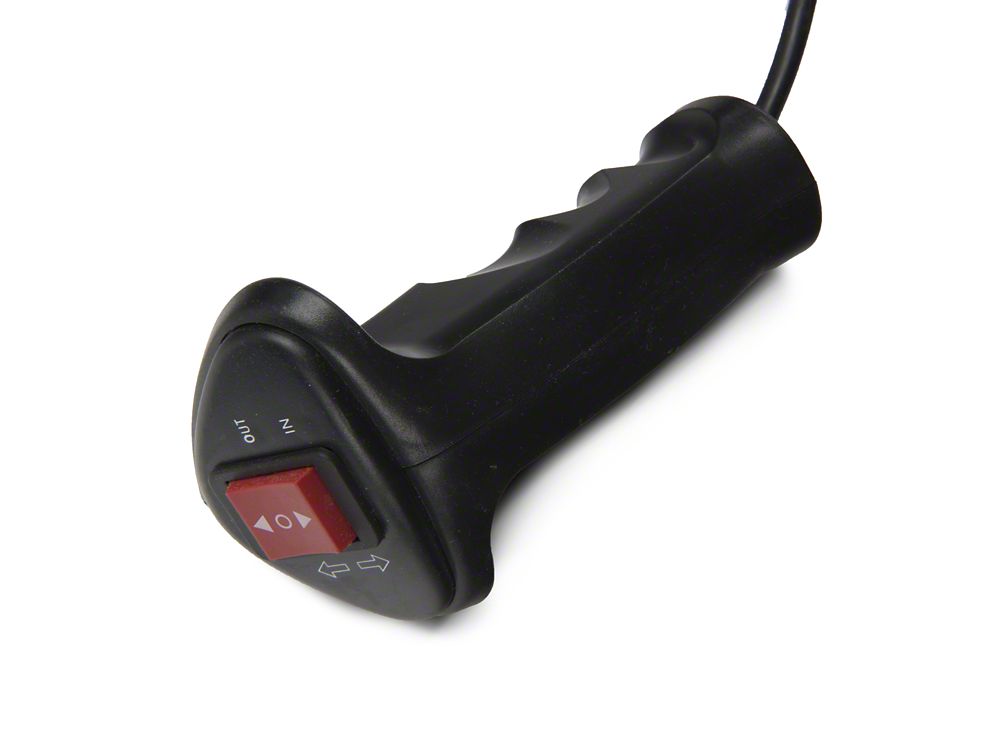

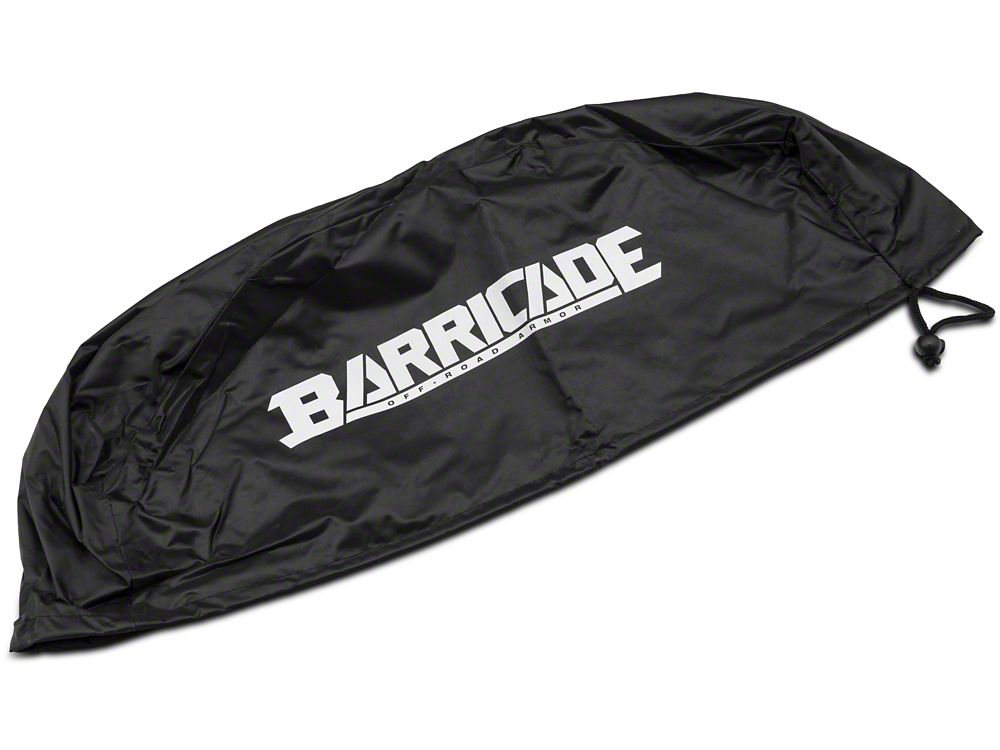

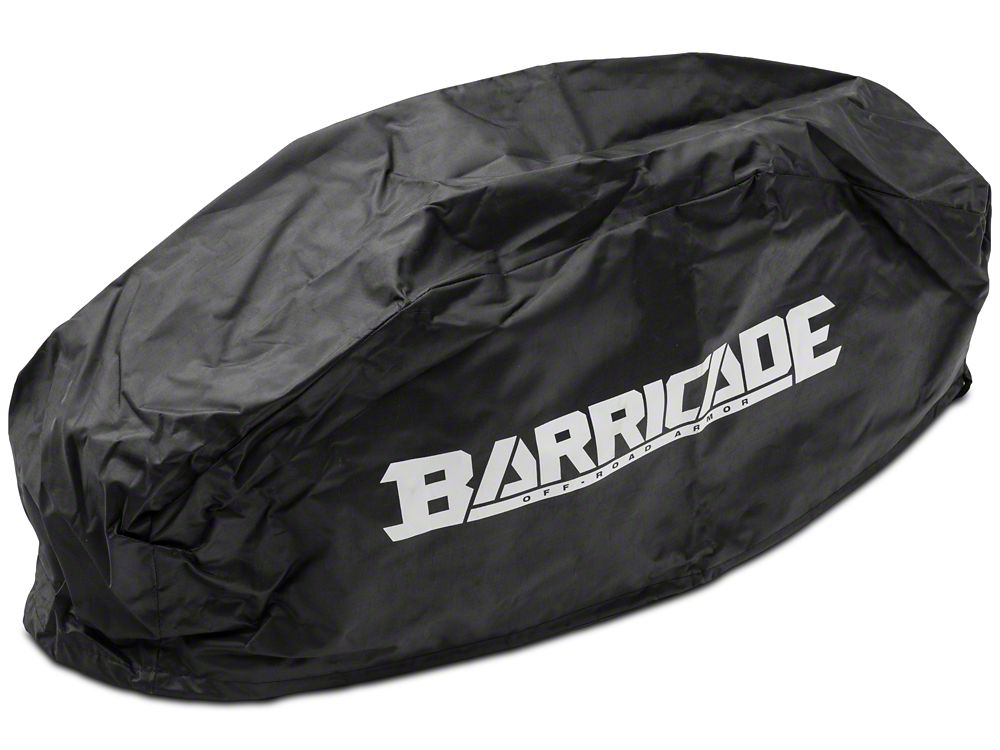

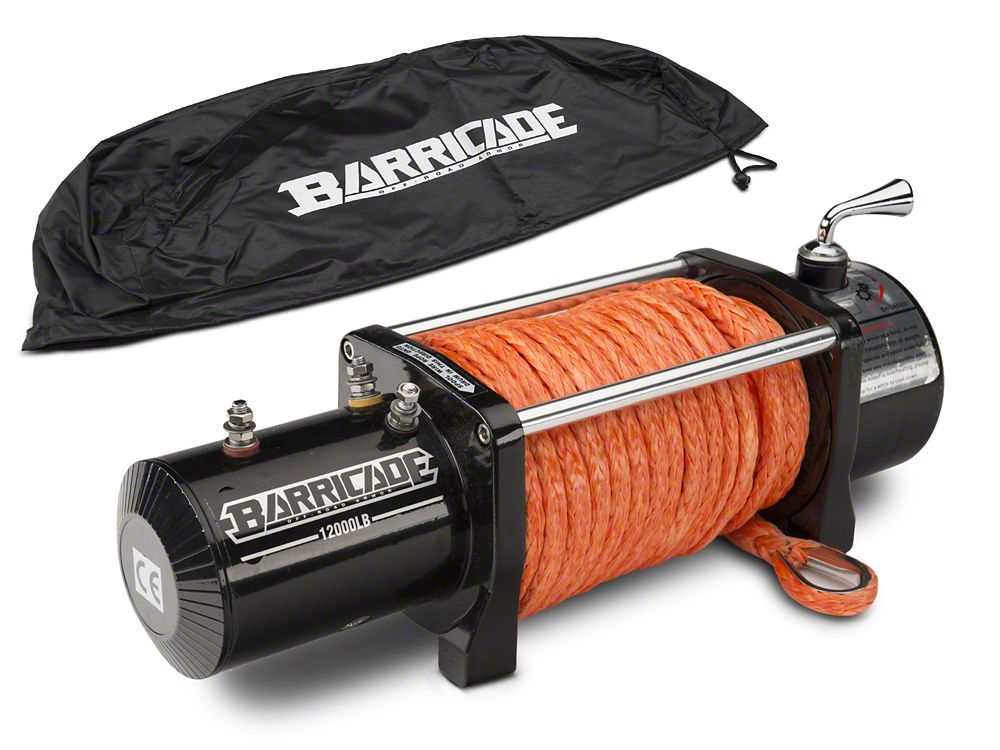

Additional Features. This Barricade Off-Road 12,000lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.

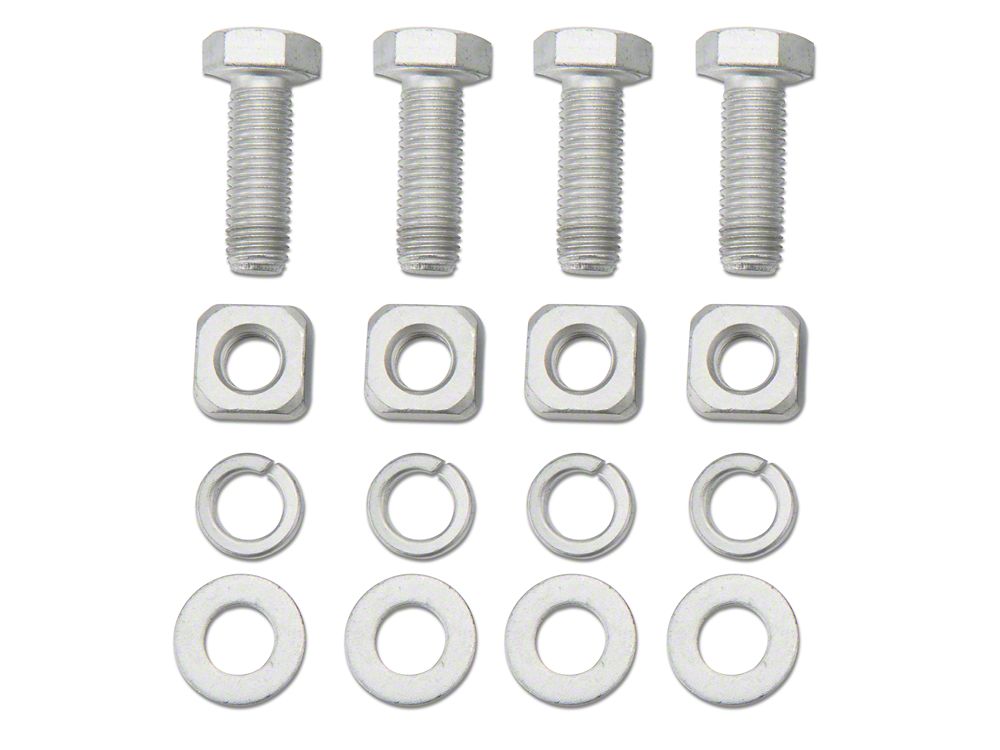

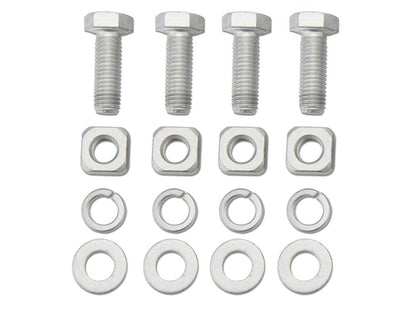

Simple, Bolt-on Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm x114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 12,000lb Winch is designed for use on all 1999-2025 Chevrolet Silverado models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 12000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch will provide 12,000lbs of pulling power. Matched with a sliding ring gear clutch and the two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 12,000lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm x114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 12,000lb Winch is designed for use on all 1999-2025 Chevrolet Silverado models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 33.3 ft./min
- 4000 lbs. - 16.8 ft./min
- 6000 lbs. - 12.8 ft./min
- 8000 lbs. - 10.1 ft./min
- 10000 lbs. - 8.8 ft./min
- 12000 lbs. - 7.6 ft./min
