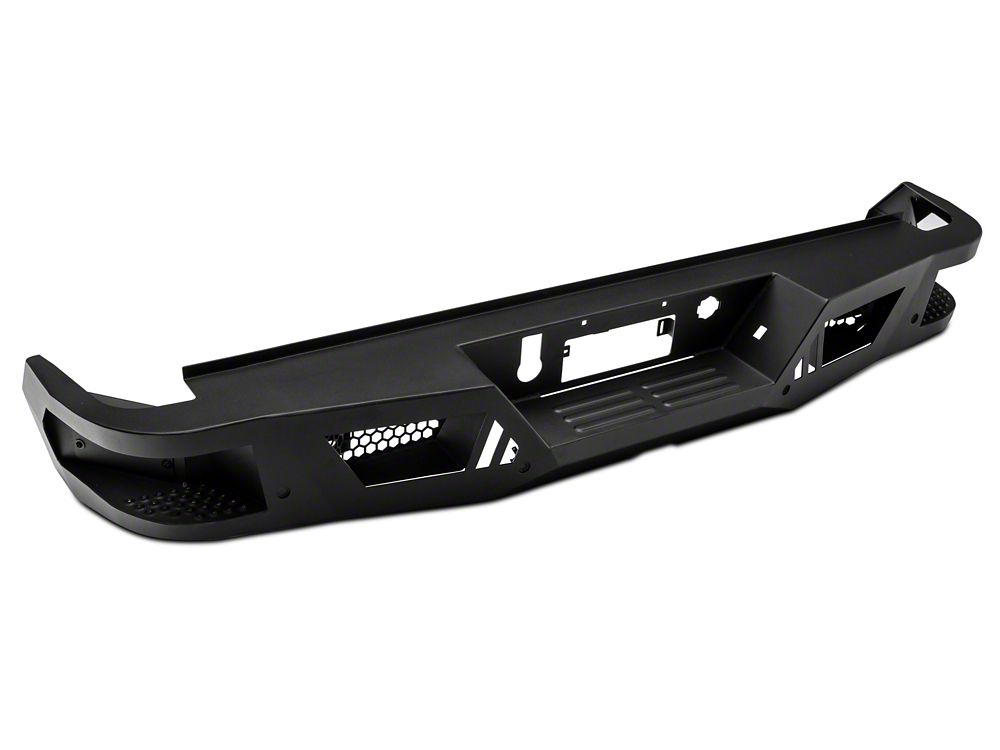

Barricade HD Rear Bumper (19-23 Sierra 1500)

(3 customer reviews)


In stock

SKU: S510326 Categories: , ,


Rugged Style and Protection. If your 2019-2023 GMC Sierra 1500 sees use both on and off-road, you should replace that wimpy factory rear bumper with one that can handle the extra abuse. This Barricade HD Rear Bumper is designed to provide excellent protection from all kinds of hazards, while adding rugged styling to your Sierra. This Barricade Bumper is ideal for those who don’t shy away from adventure where ever it may be found.

Heavy Duty Construction. Barricade manufactures their HD Rear Bumpers to precise specifications from 3mm thick steel plate for superior strength and rigidity. Barricade then completes their Bumpers in a two stage finish using epoxy pre-coating and high-grade textured black powder coating for long lasting durability.

Easy, Bolt-on Installation. Barricade’s HD Rear Bumper was engineered to be a direct bolt-on upgrade replacement for your Sierra’s original stock bumper reusing the factory mounting points. There is no cutting or modifications required for a simple straight forward install. With the help of a friend and a set of basic hand tools this Barricade HD Rear Bumper can be installed in about two hours.

Application. This Barricade HD Rear Bumper is designed to fit all 2019-2023 GMC Sierra 1500 models. This Rear Bumper is designed to work with models that are equipped with or without rear mounted backup sensors.

Additional information


19-23 Sierra 1500



3 reviews for Barricade HD Rear Bumper (19-23 Sierra 1500)

  1. Matthew M (verified owner)

    A great looking bumper, will see if it holds up with Michigan winters.
    Features are nice and install went fairly OK but I did noticed some problems for me that are specific to higher end trims like the Denali that have many sensors and features.

    1) The trailer plug assembly for higher end trucks doesn’t quite fit correctly since the top lips over the bumper edge. Also the license
    plate kind of does too but not terribly I guess.

    2) I had problems getting the keyfob anchor installed in the stock OEM
    position and had to rotate it 180 degrees to face the connector
    upward. Had to cut the bracket snap on the top to allow clearance for
    the connector.

    3) Since I have the CTA radar’s in the corners, the extensions for the
    ultrasonic sensors needed to be used on the middle sensors, not the
    outer ones as specified in the manual. And even still only needed to
    be a couple inches long.

    4) My outer ultrasonic sensors seem to be tripping out at times,
    indicating a object as close as possible to the truck. I’m investigating now but I think the holders for the sensors are not that
    tight and the sensor is being pushed to one side of the hole and detecting the bumper point blank.
    I plan to 3d print some spacers that will be push fit to perfectly locate the sensor in the center and will see if that helps.

    5) My bumper came in with some minor scratches in the coating on the edge tips, had to rubber coat those areas for rust prevention.

  2. Cesar (verified owner)

    Awesome and simple installation to simple tools and instructions were simple to follow

  3. Cesar (verified owner)

    Well finish, great look, sensors and blind spot monitor perferct fit…
