Description

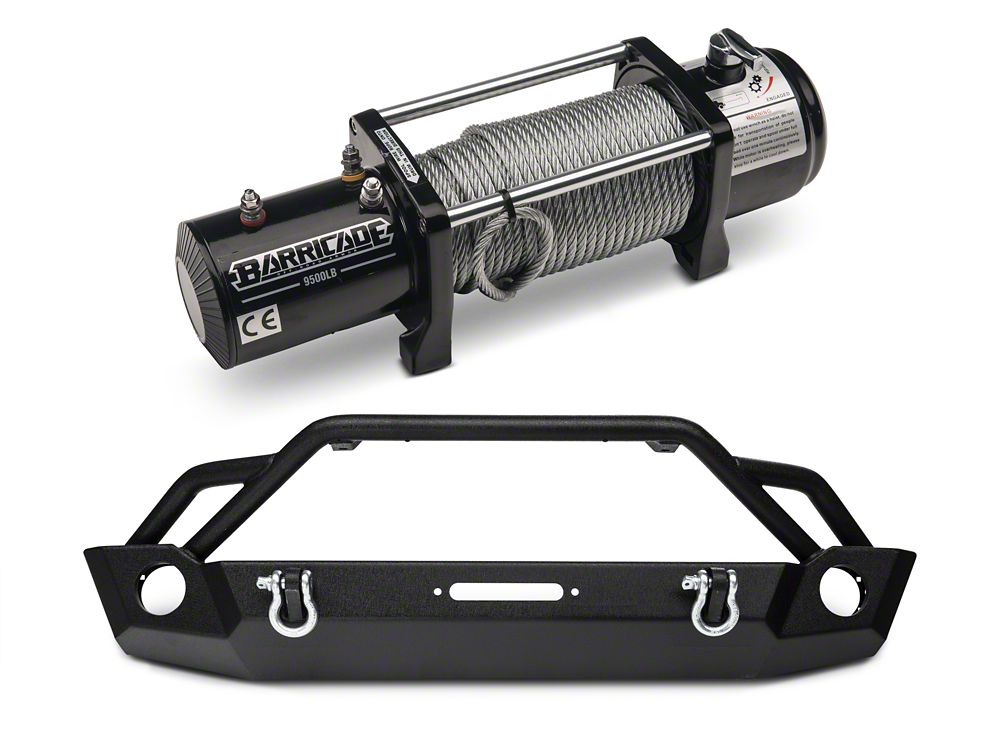

Tame the Trail. Barricade’s Extreme HD Front Bumper and 9,500 lb. Winch Combo Kit is ideal for both novice and seasoned off-roaders looking to tame the roughest trails. The Extreme heavy duty Front Bumper will protect your 2018-2023 JL from all kinds of off-road hazards, while the 9,500 lb. Winch will assist you with all types of recovery operations. This Barricade Combo Kit is must for all JL owners that like to push their Jeeps to the limit.

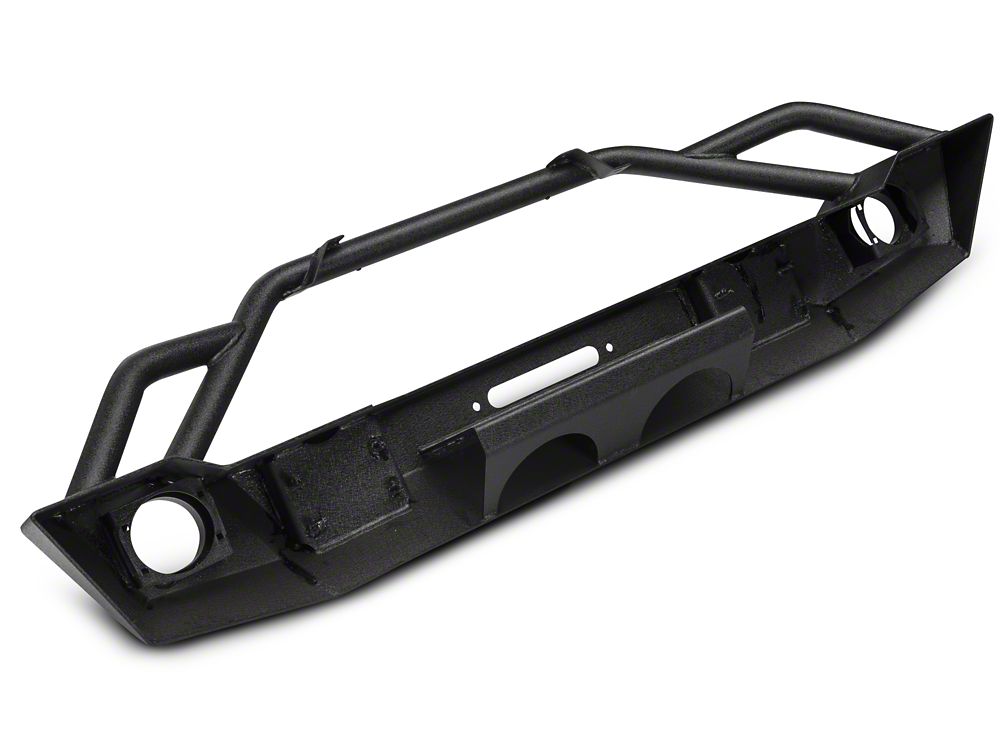

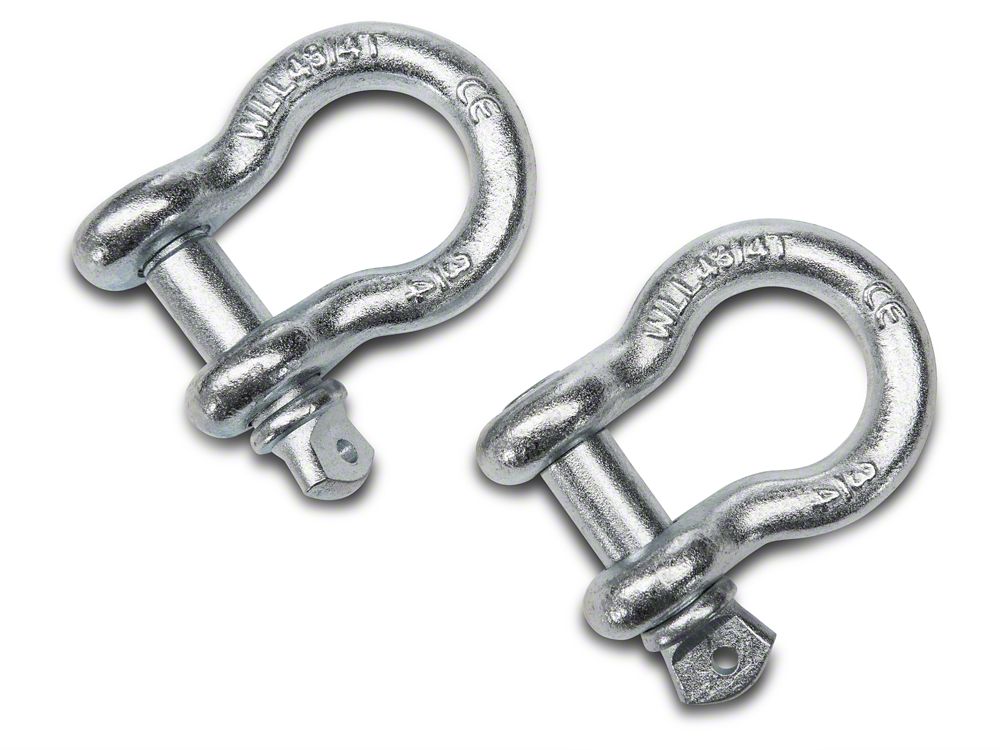

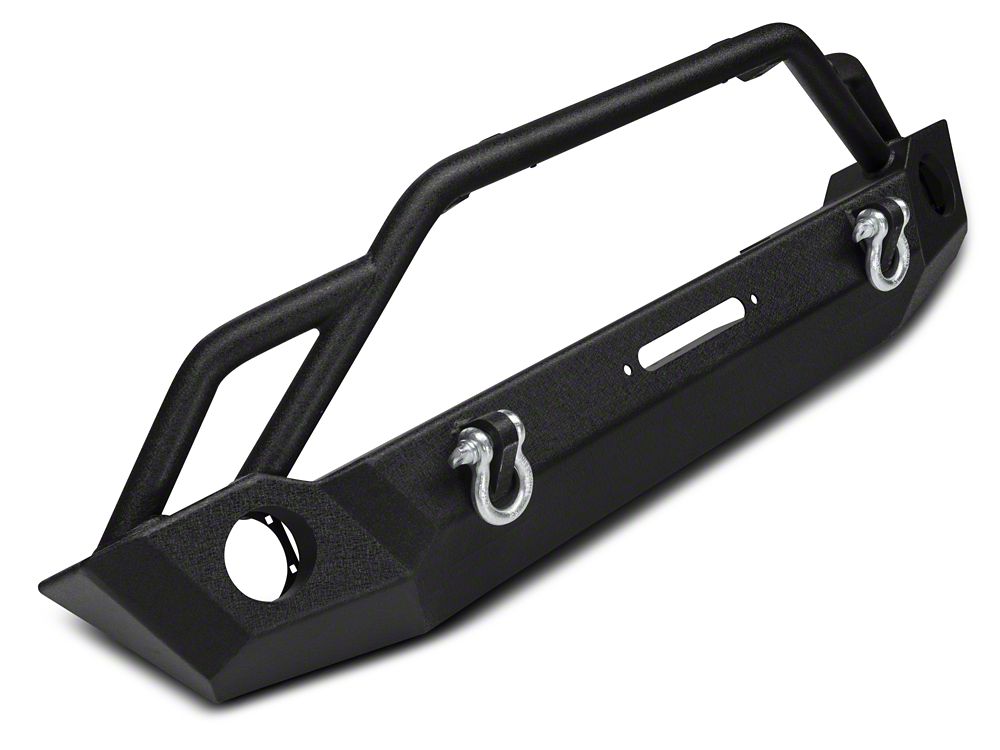

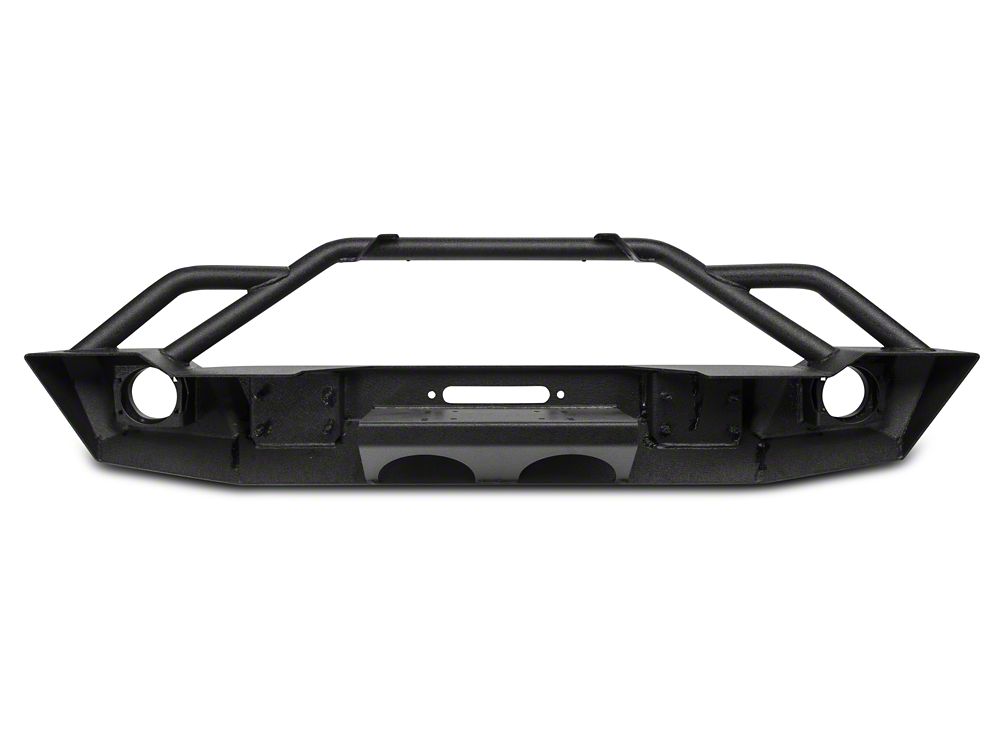

Extreme HD Front Bumper. For rock solid strength, Barricade manufactures their Extreme HD Front Bumper from 3/16″ mild steel plating. The D-Ring mounts are welded on both the inside and the outside for dependable durability. Barricade then completes the entire Bumper in a rugged two stage finish, using epoxy pre-coating and a high-grade textured black powder coating. As an added bonus, this Extreme HD Bumper also features integrated light mounts that allow you to install two fog lights and two auxiliary lights. Lights are not included – sold separately.

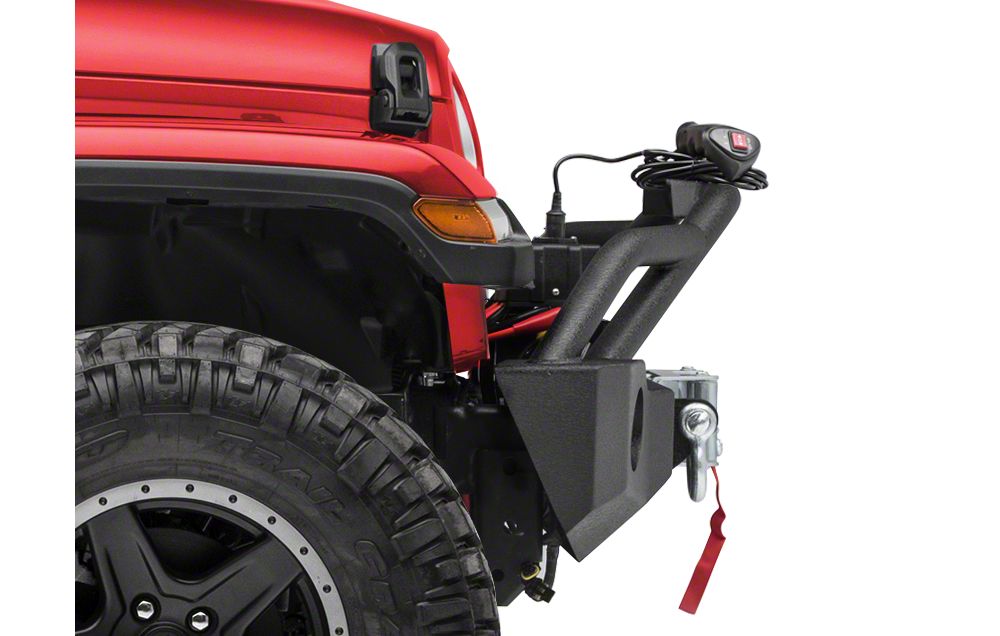

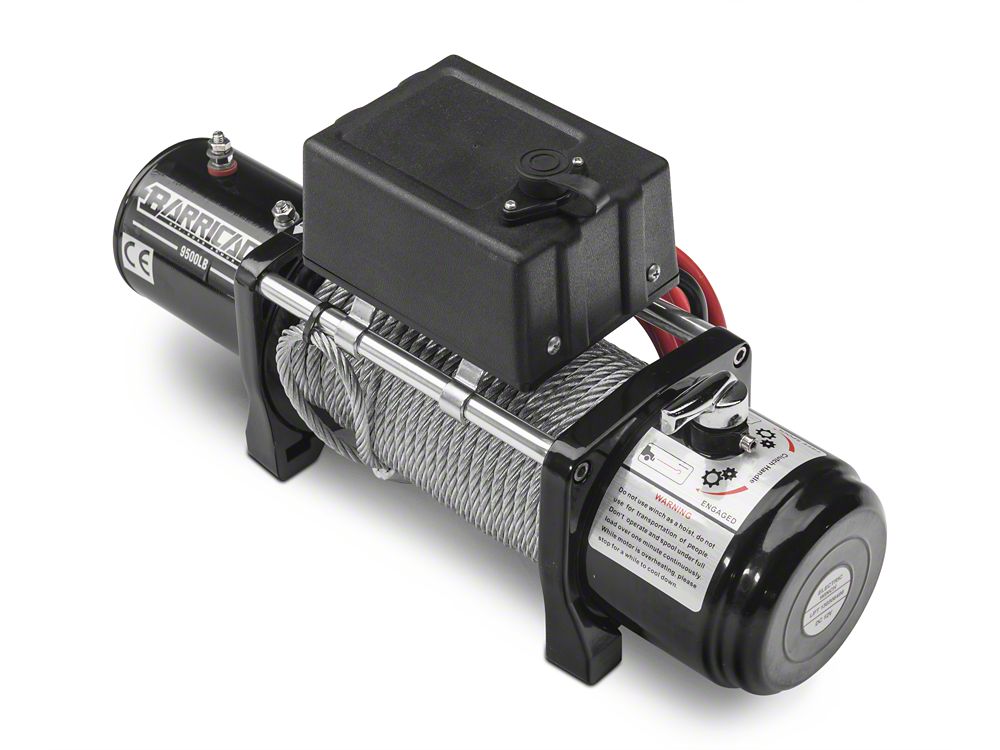

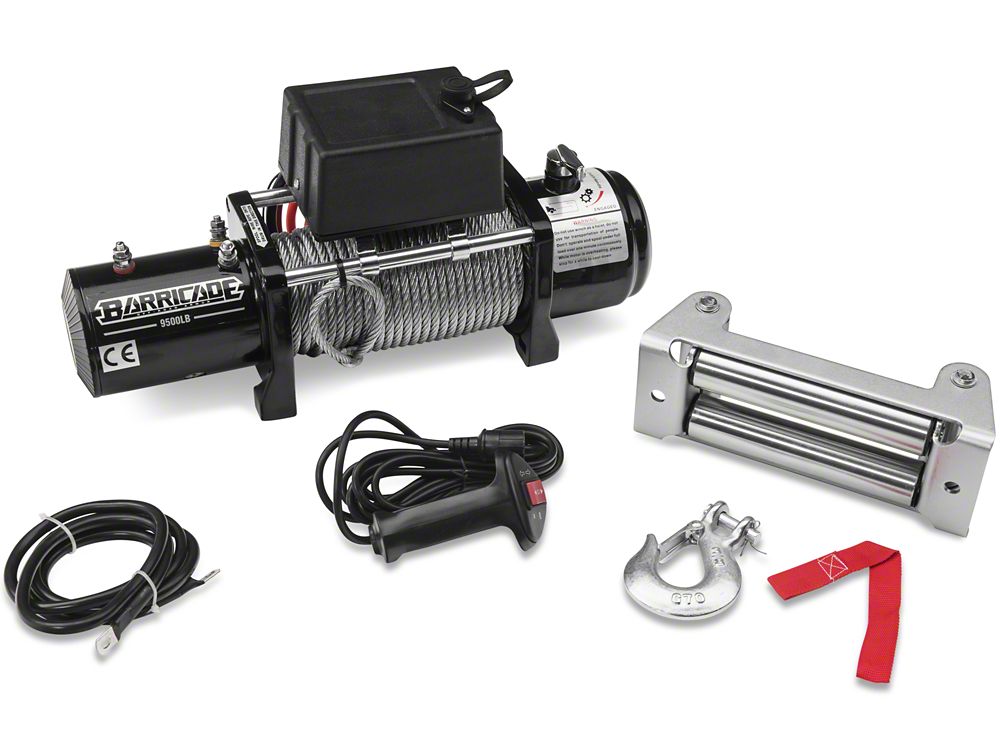

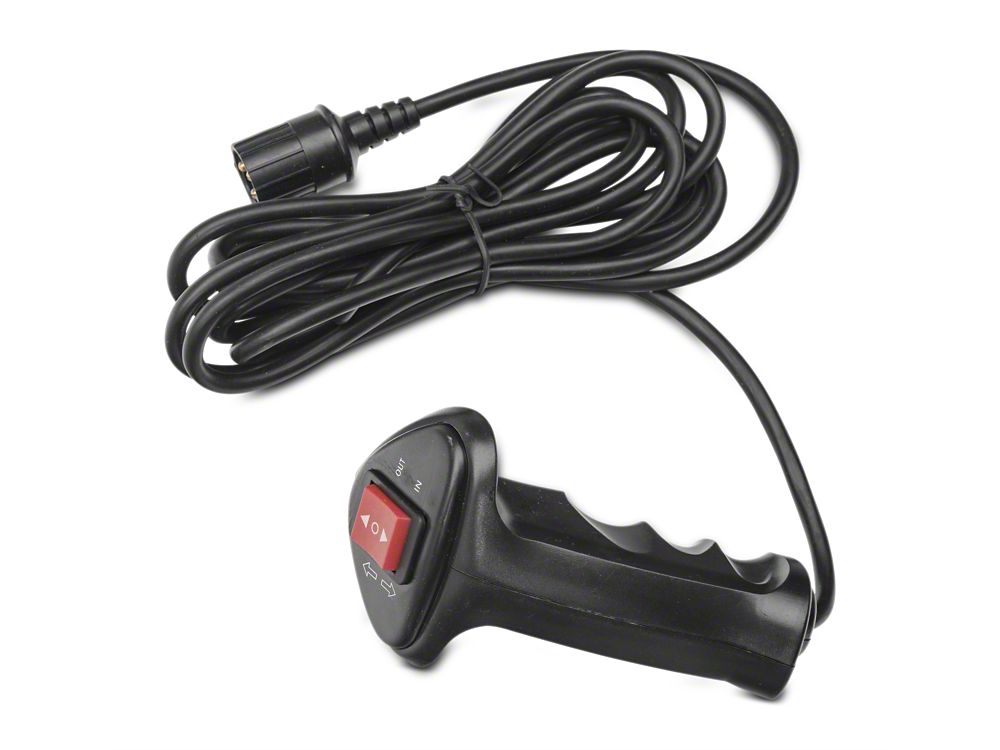

Heavy Duty 9500 LB Winch. The included Barricade Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Winch provides 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig. A 4-way aluminum roller fairlead helps to reduce wear and tear on the included 21/64″ steel cable. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.

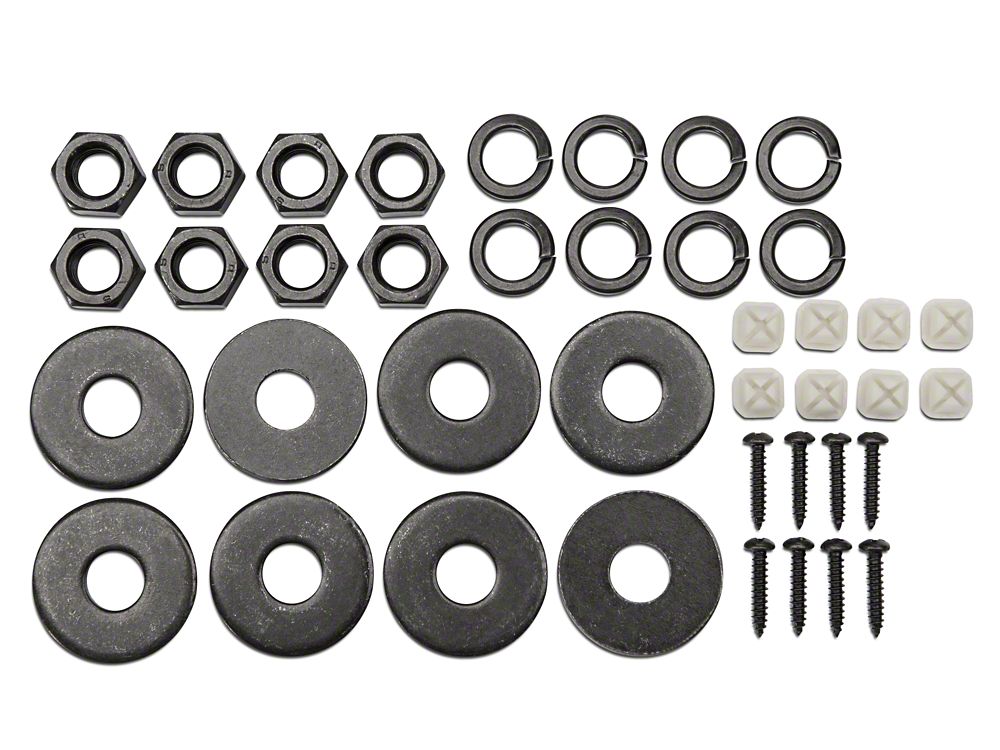

Simple, Bolt-on Installation. Barricade engineered their Bumper and Winch Combo Kit to be a direct bolt-on upgrade using just basic hand tools. There is no cutting or drilling required for a clean, straight forward installation. With the help of a friend, installation can be completed in about 3 hours.

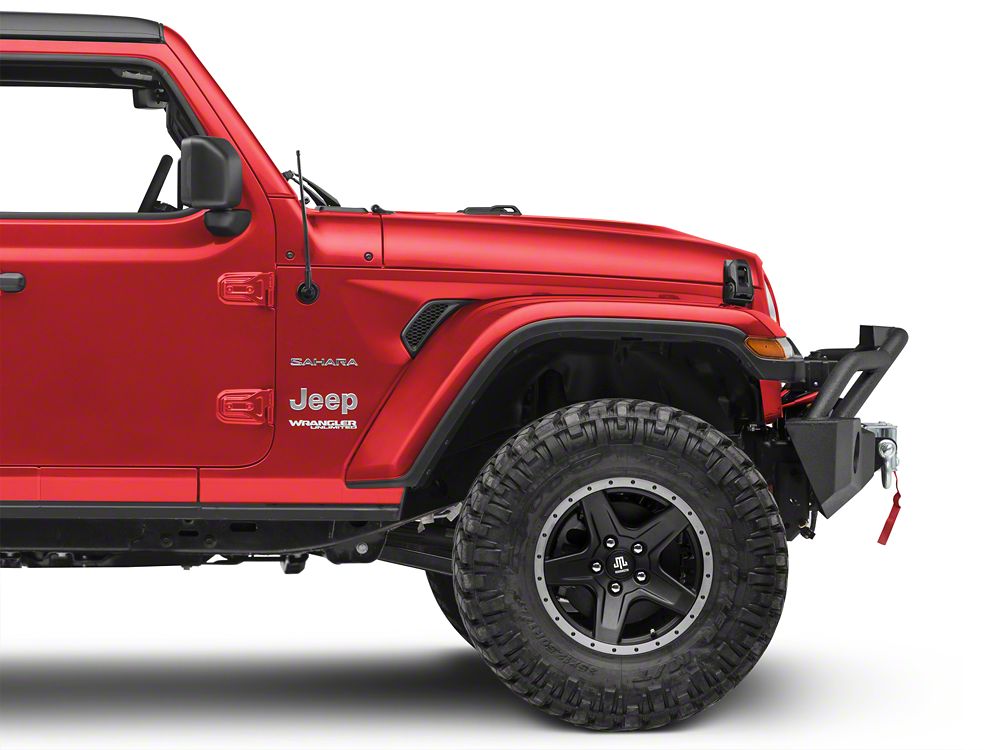

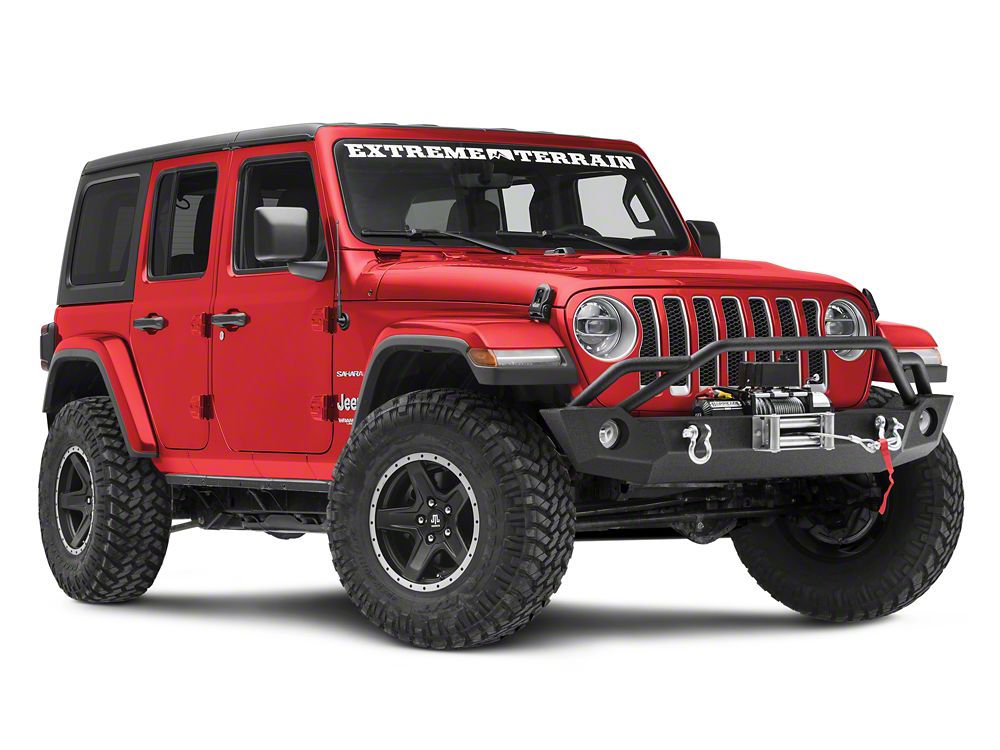

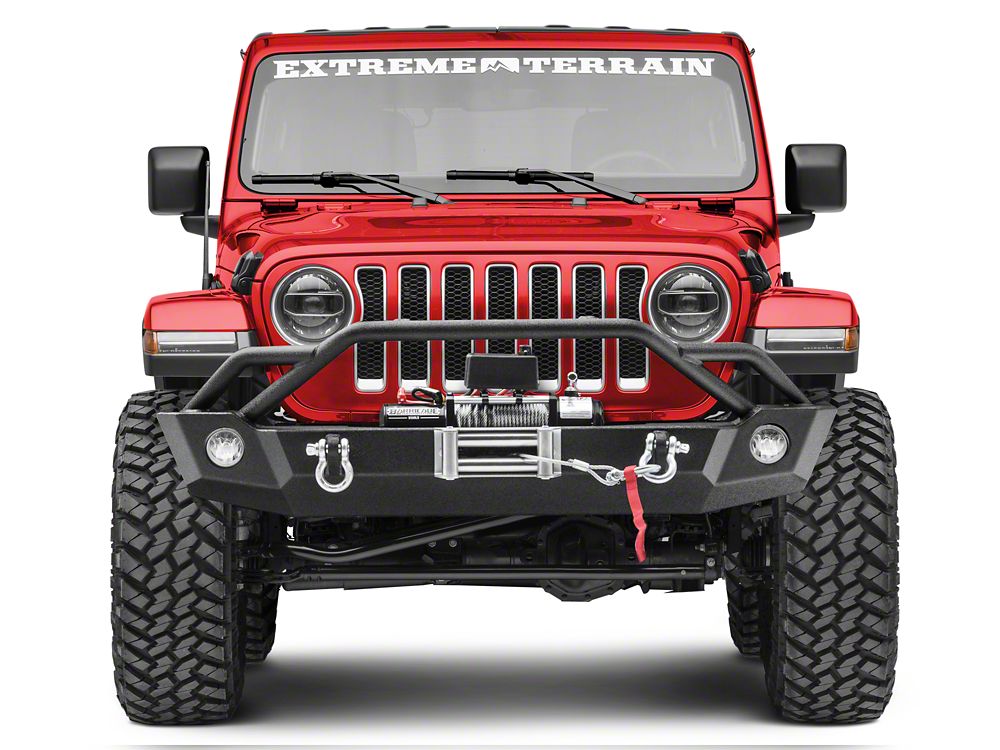

Application. This Barricade Off-Road Extreme HD Front Bumper and 9,500 lb. Winch with Steel Cable Combo kit is specifically designed for use on 2018-2023 Jeep Wrangler JL models.
Line Pull Speeds
- 0 lbs. – 35.4 ft./min
- 2000 lbs. – 14.8 ft./min
- 4000 lbs. – 11.2 ft./min
- 6000 lbs. – 9.5 ft./min
- 8000 lbs. – 7.87 ft./min
- 9500 lbs. – 6.43 ft./min
Christopher H (verified owner) –
Relatively easy to install, had to widen one hole in the Jeep. Took a couple hours, able to install alone. Looks great!
Walter R (verified owner) –
Looks great but what a pain to install. Holes in bumper didn’t align with bolts on winch. Only 1/8 inch off but had to lengthen all holes to force fit. Hope Extreme creates a better hole template In the future. Would have been a beeeze to install if everything was correctly aligned.
David K (verified owner) –
Was told the Driving lights wouldn’t fit because I have a 2018 Rubicon JL. Looked at them and they have the four mounting screws Two on top and two at the bottom. Some Rubicons Driving lights have a strip on the side for mounting( That won’t fit. )
Went on easy but had to do a small mod to get the wench to fit.
Wesley P (verified owner) –

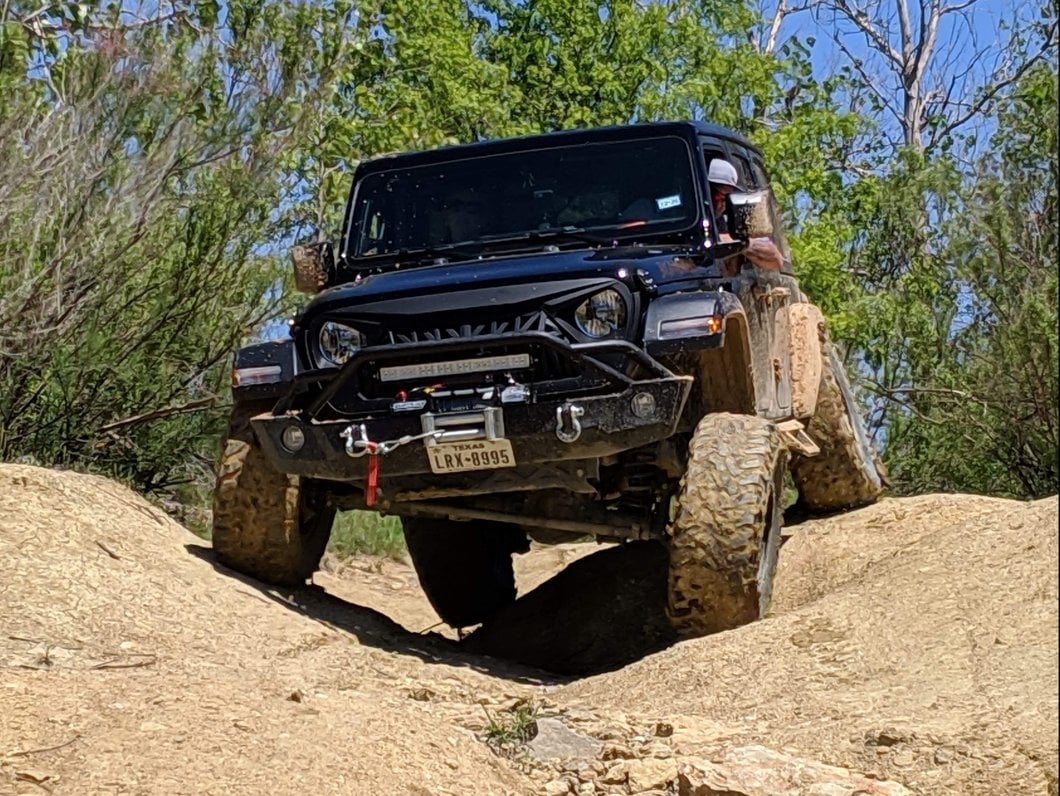

Was real pleased with this combo, looks better mounted on my Jeep than in the pictures. Everything fit as supposed too, great buy for the buck.
SAM C (verified owner) –
easy installation, perfect fit on my new 2018 Jeep Wrangler Jl
