Barricade 9,500 lb. Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)

Description

Remote Control Recovery. Never hit the trails or work site unprepared. Make sure your Chevrolet Silverado is well equipped with a Barricade Off-Road 9500lb Heavy Duty Winch that includes a Synthetic Rope. This Barricade Winch will help you get out of the toughest spots.

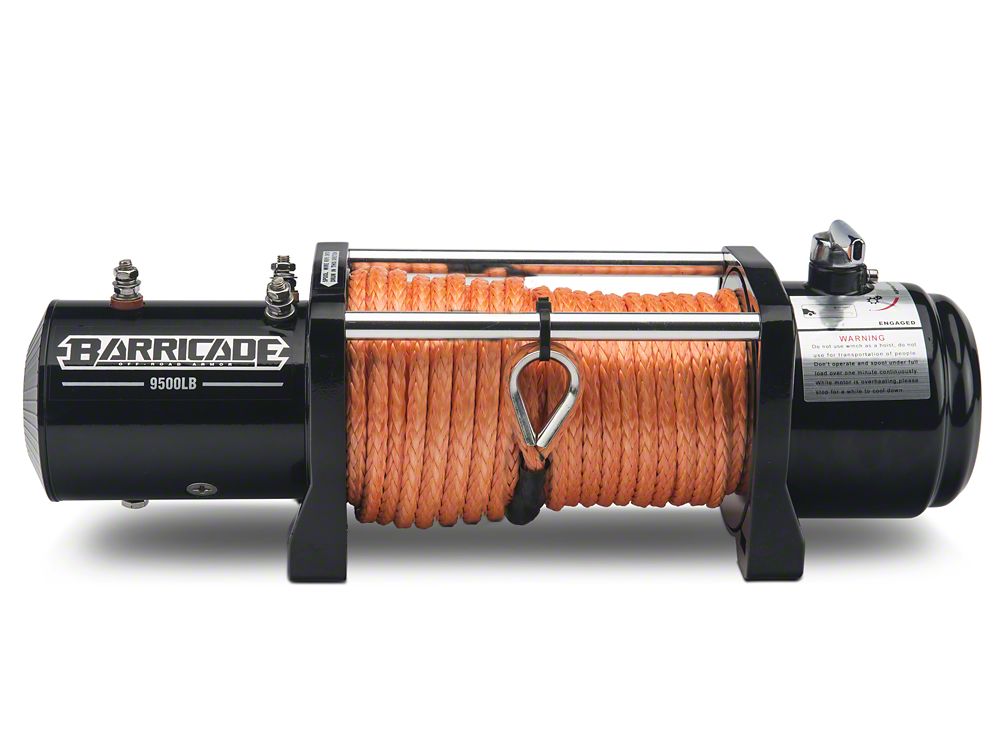

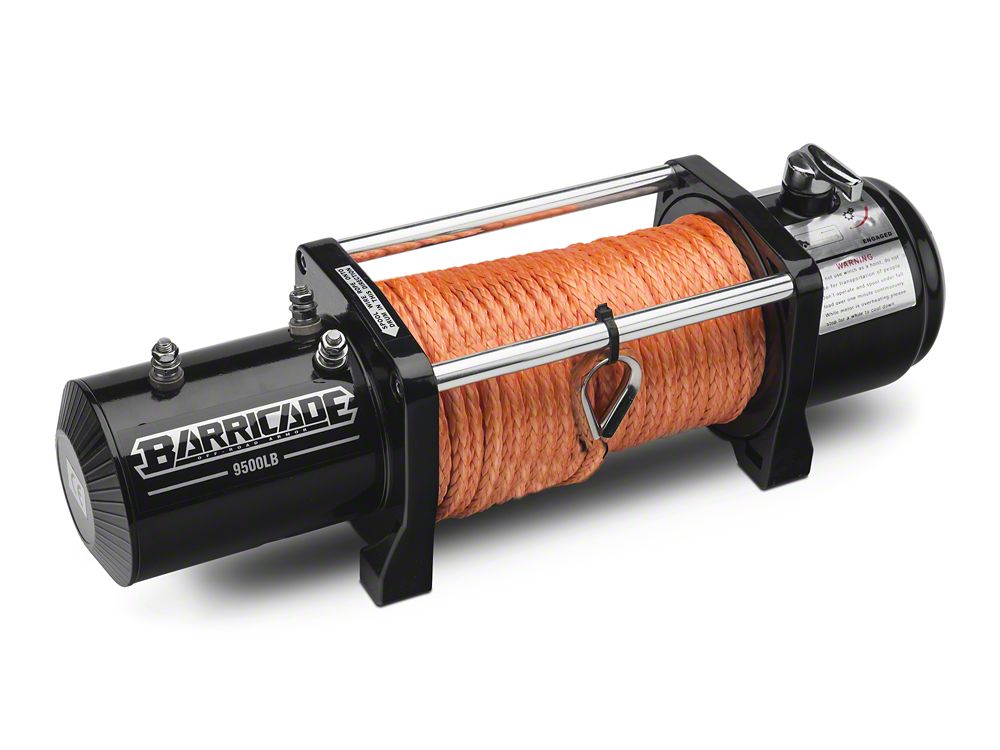

Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9,500lbs of pulling power. Matched with a sliding ring gear clutch and the two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

Additional Features. This Barricade Off-Road 9,500lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wireless remote control allowing you to safely stand clear when in operation.

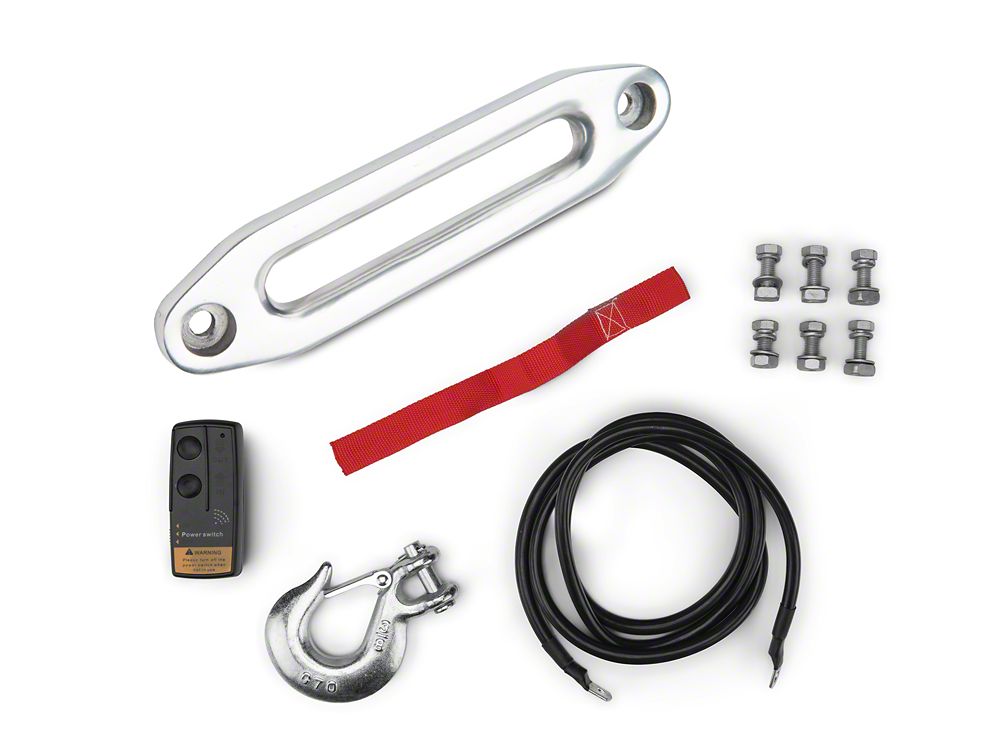

Simple, Bolt-on Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1″ × 6.3″ × 8.6″ and a mounting bolt pattern of 254mm x 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

Application. This Barricade Off-Road 9500lb Winch with Wireless Remote Control is designed for use on all 1999-2023 Chevrolet Silverado models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

Line Pull Speeds

• 0 lbs. – 35.4 ft./min
• 2000 lbs. – 14.8 ft./min
• 4000 lbs. – 11.2 ft./min
• 6000 lbs. – 9.5 ft./min
• 8000 lbs. – 7.87 ft./min
• 9500 lbs. – 6.43 ft./min

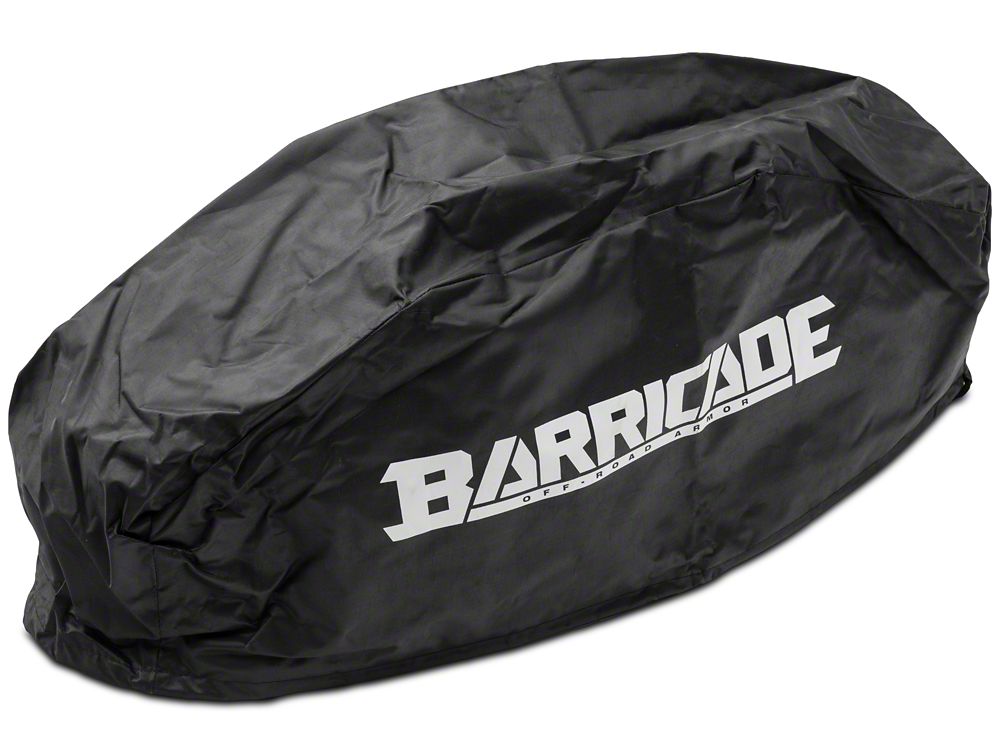

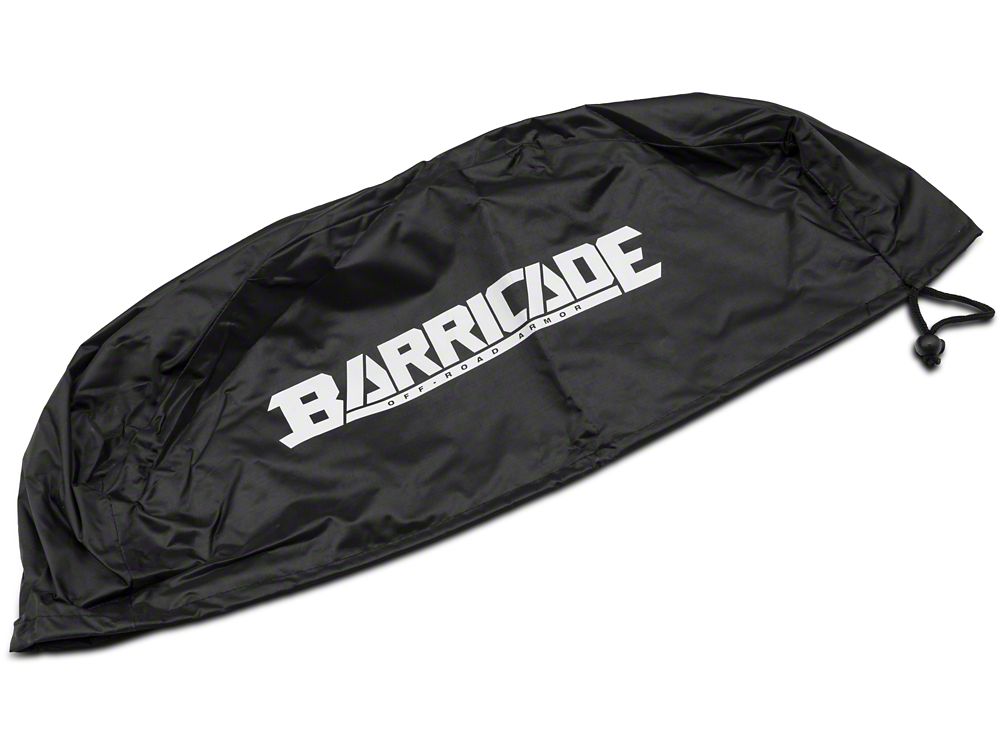

Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.
