Barricade 12,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

Description

Recovery Power. Over coming obstacles is all part of the fun when you go off-roading in your Toyota Tacoma. So, you should be prepared for the likely possibility of getting stuck out on the trail by outfitting your rig with a reliable recovery system like Barricade Off-Road’s 12,000 lb Heavy Duty Winch. This Barricade Winch, which includes a Synthetic Rope, will provide you with the pulling power you require to get yourself or others unstuck from the messiest situations.

Heavy Duty 12,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 187.2:1 gear ratio, this Barricade Winch provides 12,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

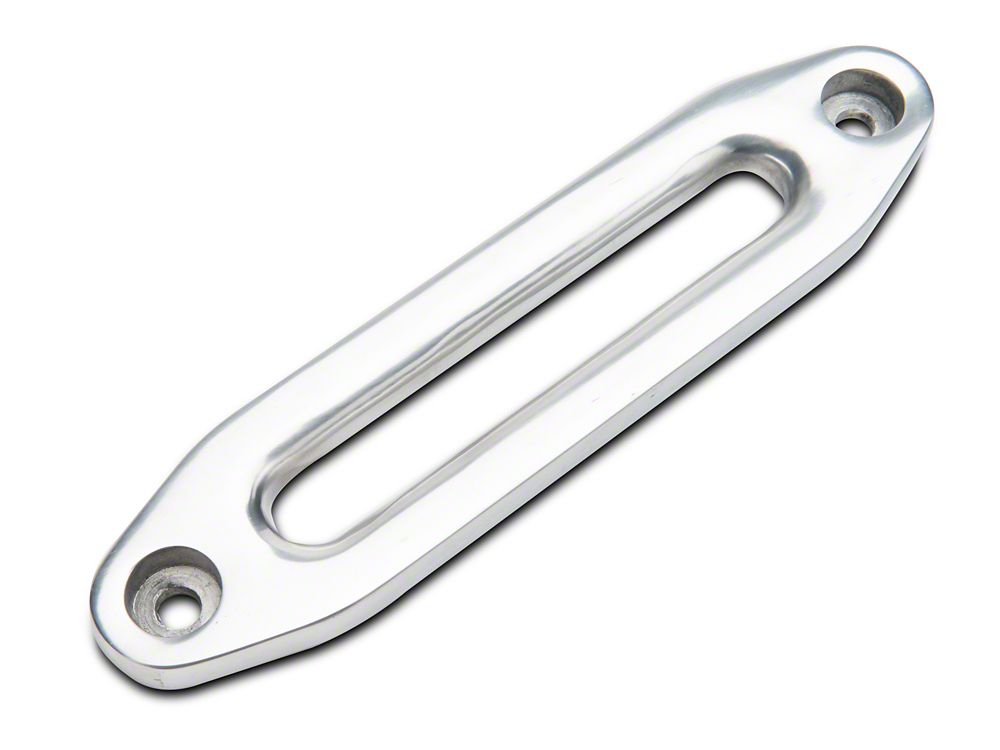

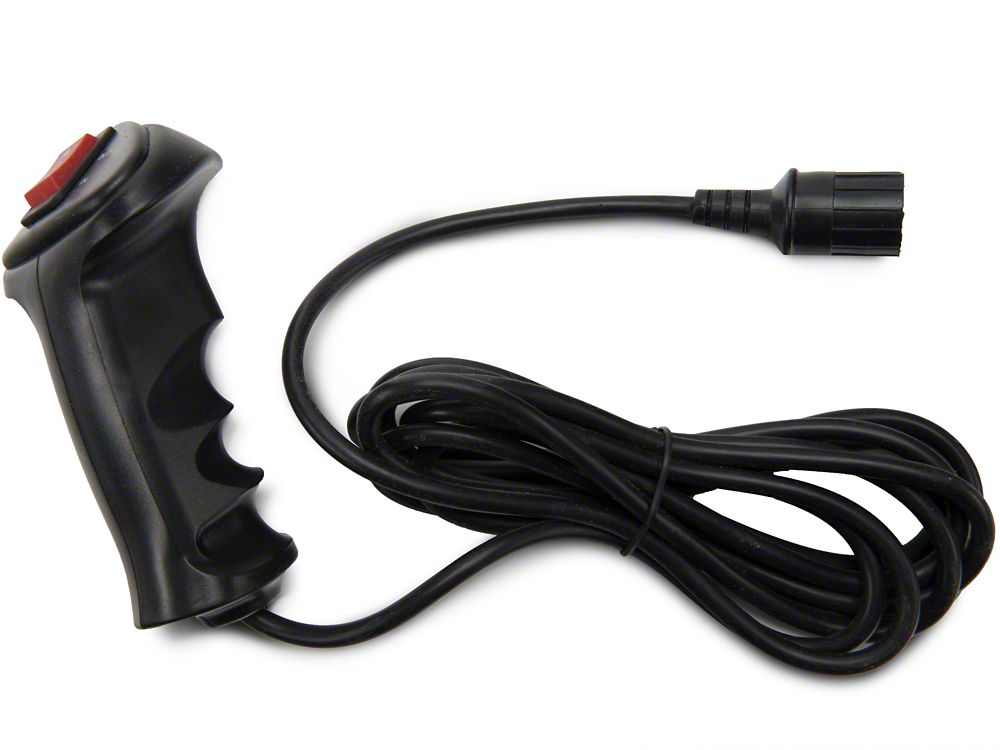

Additional Features. This Barricade Off-Road 12,000 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.

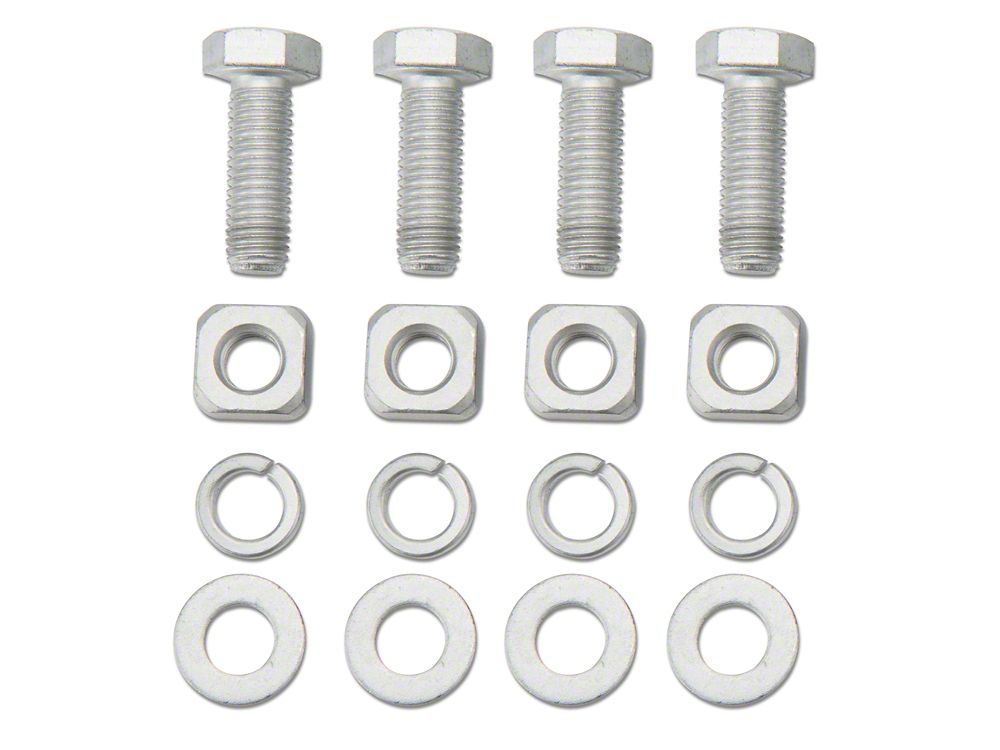

Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1-inch × 6.3-inch × 8.6-inch and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation.

Application. This Barricade Off-Road 12,000lb Winch is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

Line Pull Speeds

• 0 lbs. – 33.3 ft./min
• 4000 lbs. – 16.8 ft./min
• 6000 lbs. – 12.8 ft./min
• 8000 lbs. – 10.1 ft./min
• 10000 lbs. – 8.8 ft./min
• 12000 lbs. – 7.6 ft./min

Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.
