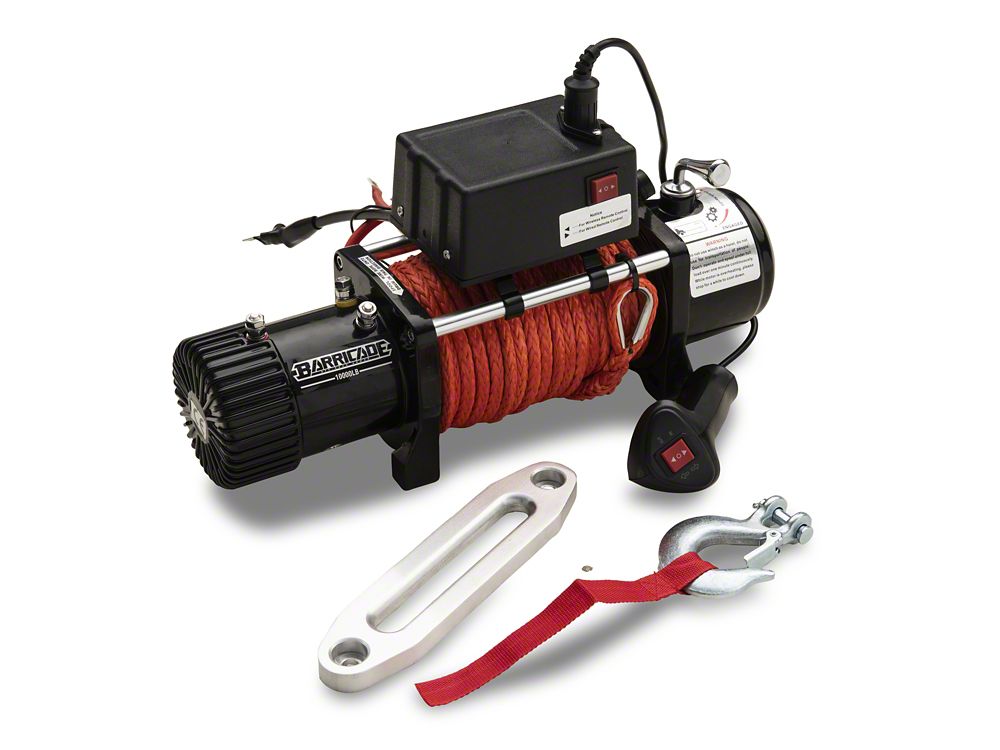

Barricade 10,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

(5 customer reviews)


In stock

SKU: U3148 Categories: , ,


Be Prepared For a Recovery Situation. It doesn’t matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and “be prepared” for what the trail might throw at you. That’s why you should outfit your Wrangler with a reliable recovery system like Barricade Off-Road’s 10,000 lb Winch that includes a Synthetic Rope. This Barricade Winch will help you to get out of the messiest situations.

Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

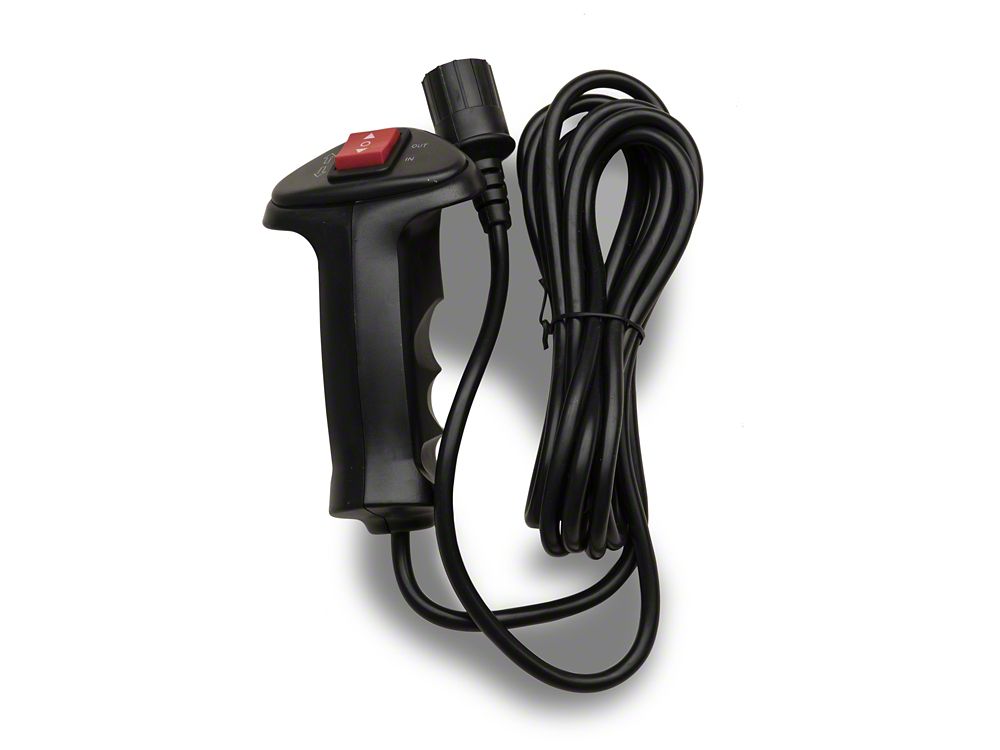

Additional Features. This Barricade Off-Road 10,000 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot orange synthetic rope while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.

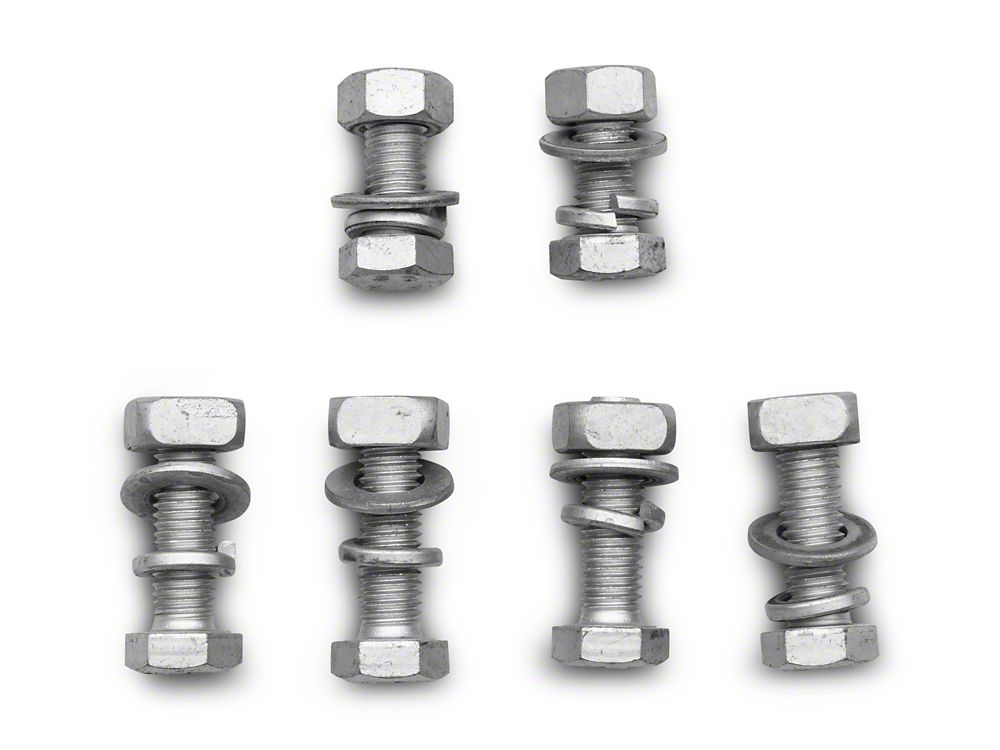

Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

Application. This Barricade Off-Road 10,000lb Winch with Synthetic Rope is designed for use on all Jeep CJ and Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

Line Pull Speeds

  • 0 lbs. – 16.5 ft./min
  • 2000 lbs. – 13.68 ft./min
  • 4000 lbs. – 11.55 ft./min
  • 6000 lbs. – 8.9 ft./min
  • 9500 lbs. – 6.43 ft./min

Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, a winch cover is required when not in use.

Additional information


Universal; Some Adaptation May Be Required



5 reviews for Barricade 10,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

  1. Anthony P (verified owner)

    It’s not the one originally ordered. This is why I’m not buying nothing from you guys again I ordered the one with the green roping you sent me this one same thing as a tire cover your picture shows of waving flag you send me one with the straight flag I’m not buying nothing. No more stop bothering me.

  2. russell Y (verified owner)

    Used this winch several times for recovery and just love it so far.

  3. Mario J (verified owner)

    Great product. Easy to install. Highly recommend. Adds a classy look to my Gladiator.

  4. Vanessa V (verified owner)

    Love this winch, easy install, works great and looks awesome. I am very pleased

  5. Tim H (verified owner)

    Great bang for your the buck! 10,000lb load capacity, easy to install flawless operation! Synthetic line is the way to go!
