Description

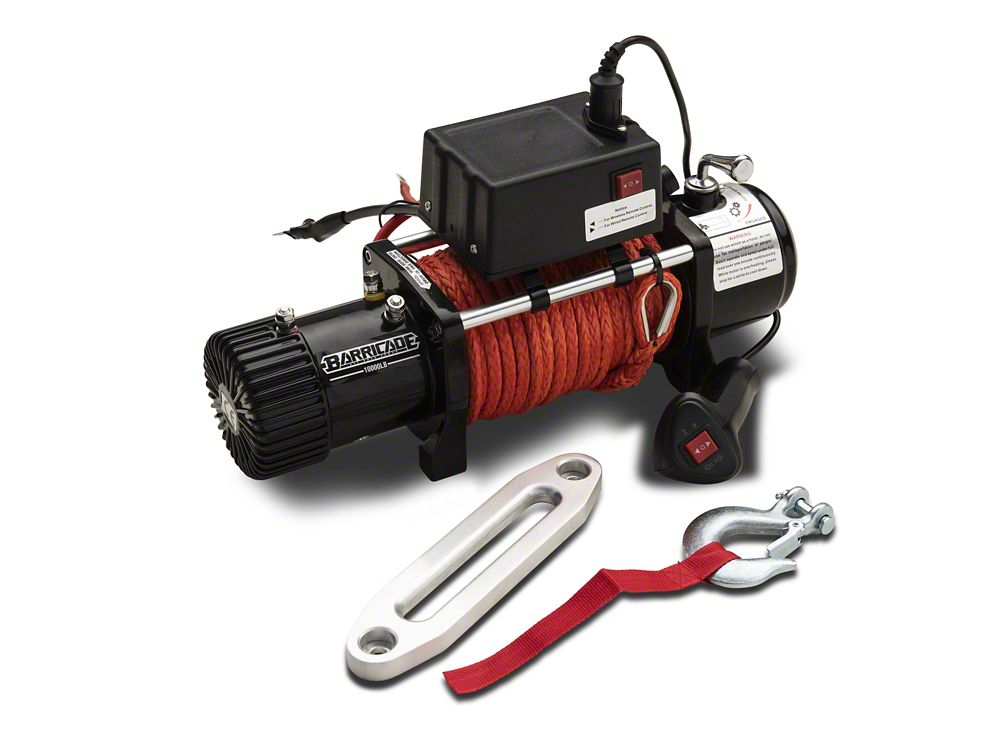

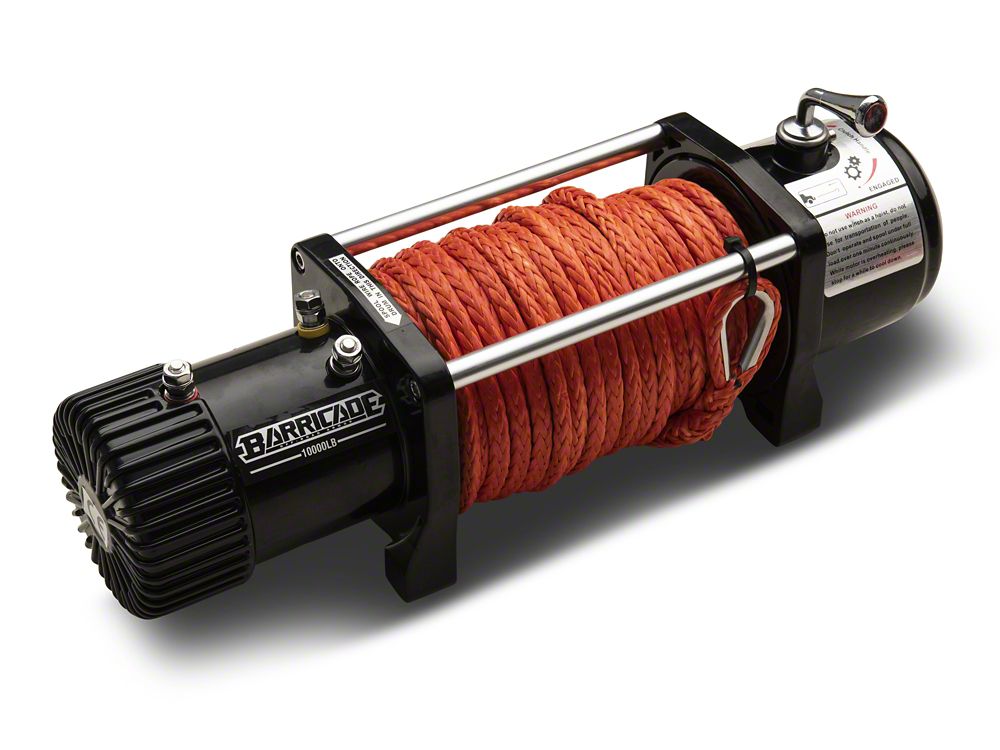

Be Prepared For a Recovery Situation. It doesn’t matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and “be prepared” for what the trail might throw at you. That’s why you should outfit your Wrangler with a reliable recovery system like Barricade Off-Road’s Wireless 10,000 lb Winch that includes a Synthetic Rope. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

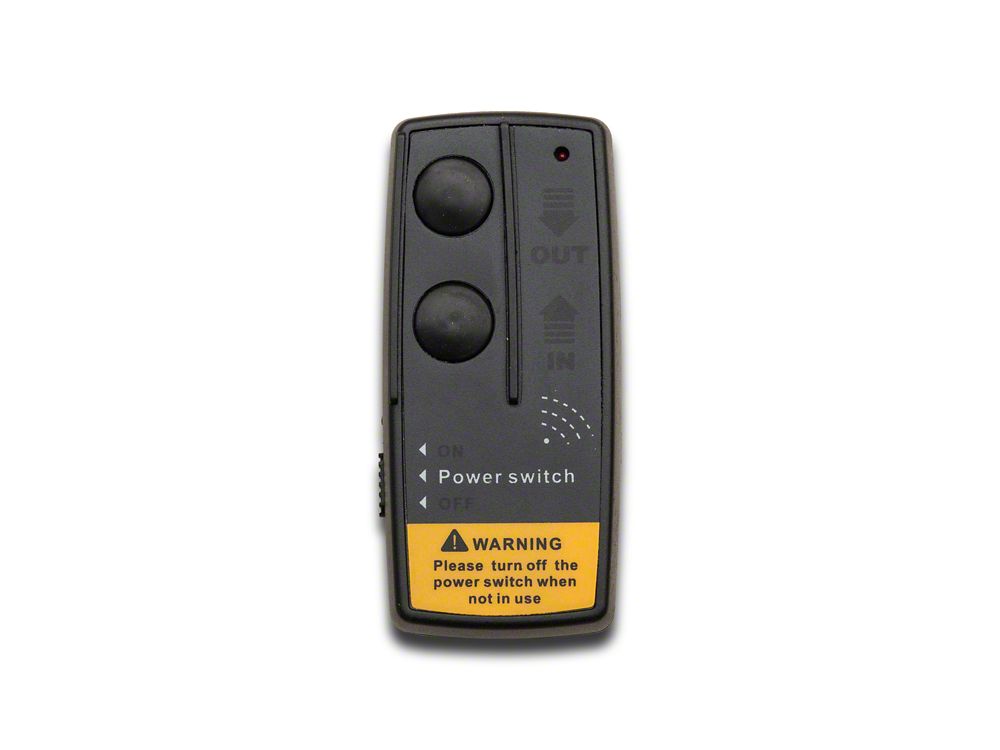

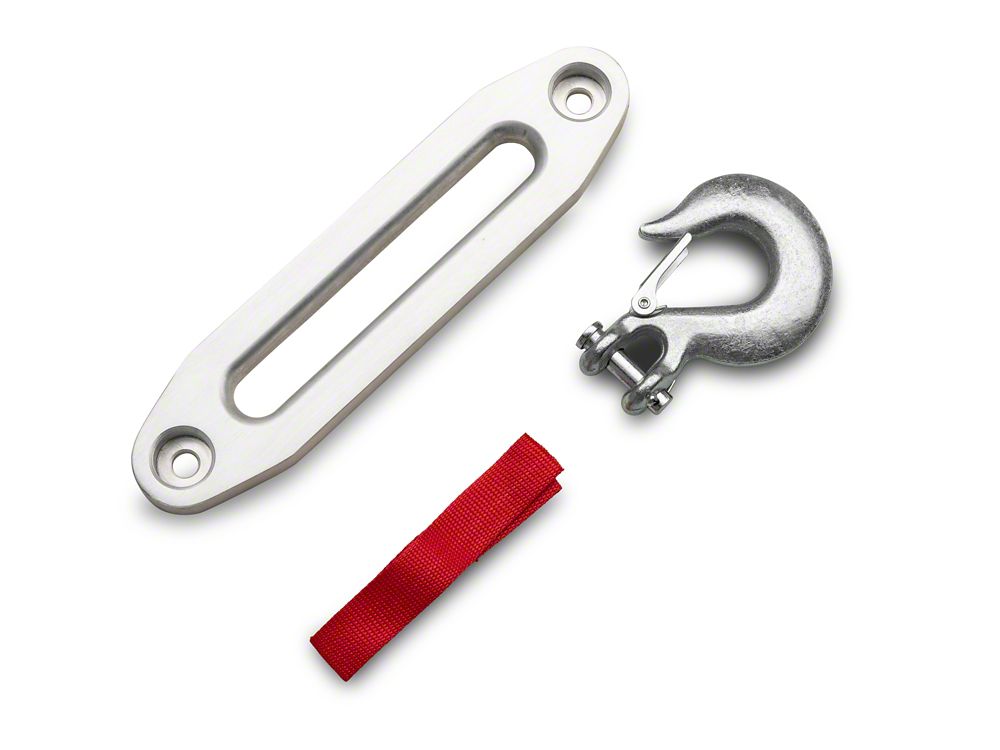

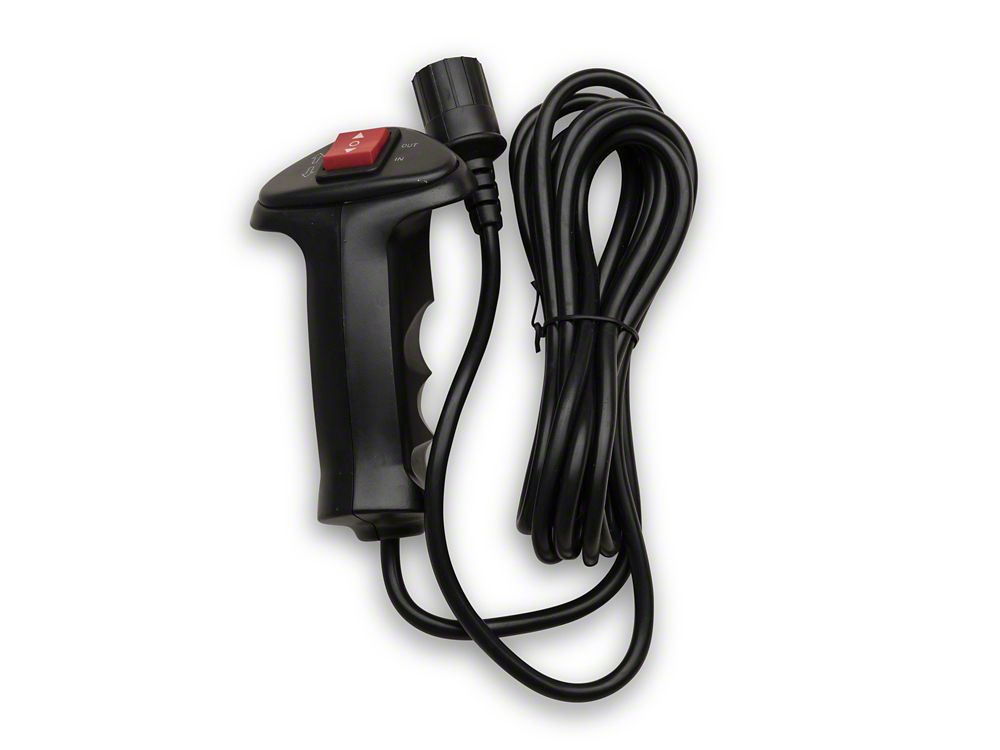

Additional Features. This Barricade Off-Road 10,000 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot orange synthetic rope while keeping it from binding. This Barricade Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch with Wireless Remote and Synthetic Rope is designed for use on all Jeep CJ and Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. – 16.5 ft./min
- 2000 lbs. – 13.68 ft./min
- 4000 lbs. – 11.55 ft./min
- 6000 lbs. – 8.9 ft./min
- 9500 lbs. – 6.43 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, a winch cover is required when not in use.
Jason Y (verified owner) –
And hopefully never will but this has all the features the occasional trail rider will need
Steve G (verified owner) –
Looks good and works great. This was one of the easiest mods I have made to my 99 tj. Instructions were complete and easy to follow. Took about an hour from start to finish.
Michael B (verified owner) –
Easy install. Overall product seems well built. The first use was successful and pulled the jeep right out of a mud pit.
Leander W (verified owner) –
this was an an awesome buy well worth the purchase. the poweris excellent and the remote – i love it….. you will definitely enjoy this when you purchase. i wondered about the power, and when i used it, wow…
Adam C (verified owner) –
I went down a trail that I shouldn’t have. I just thought it might lead somewhere. It didn’t….
I had two winch twice on the way out. It didn’t even break a sweat.
